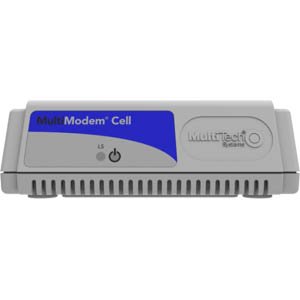

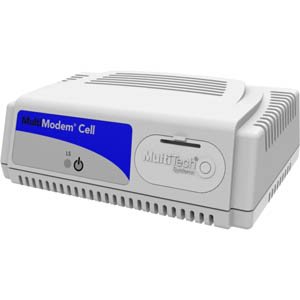

The MultiModem Cell HSPA cellular modem offers standards-based quad-band HSPA performance. This readyto- deploy, standalone modem provides wireless data communication and integrates seamlessly with virtually any application. The MultiModem Cell cellular modem is based on industry-standard open interfaces and can be desktop or panel mounted.
Wireless Specifications
| Broadband Transmission Technology: | Cellular |
| ISM Band: | No |
| UNII Band: | No |
| Cellular Generation: | 3G |
| Cellular Network Supported: | GSM 1800 |
| GSM 1900 |
| GSM 850 |
| GSM 900 |
| WCDMA 1900 |
| WCDMA 2100 |
| WCDMA 850 |
| WCDMA 900 |
| Cellular Data Connectivity Technology: | EDGE |
| GPRS |
| HSPA |
| Antenna Connector: | SMA Connector |
| Wireless Transmission Speed: | 7.20 Mbps |
Interfaces/Ports
| Ethernet Port: | No |
| Fast Ethernet Port: | No |
| Gigabit Ethernet Port: | No |
| Network (RJ-11): | No |
| VGA: | No |
| Serial: | No |
| USB: | Yes |
| Powerline: | No |
| Management Port: | No |
| Power Over Ethernet: | No |
I/O Expansions
| Expansion Slots: | 1 x SIM Card |
Physical Characteristics
| Form Factor: | Desktop |
| Height: | 1.6" |
| 40.4 mm |
| Width: | 121.0 mm |
| 4.8" |
| Depth: | 2.9" |
| 73.4 mm |
| Weight (Approximate): | 181.00 g |
| 6.40 oz |
Miscellaneous
| System Requirements: | Operating Systems: - Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Linux 2.6.18 or Later
|
| Certifications & Standards: | - CE Mark
- R&TTE
- FCC Part 15 Class B
- FCC Part 22, 24
- EN 55022 Class B
- EN 55024
- RSS 132, 133
- UL 60950-1
- cUL 60950-1
- IEC 60950-1
|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | RoHS |
Warranty
| Standard Warranty: | 2 Year |
