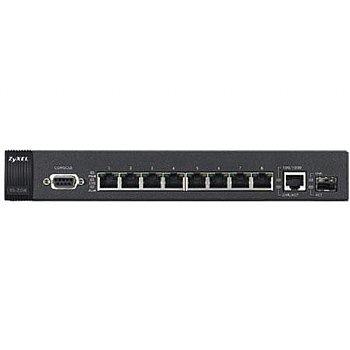

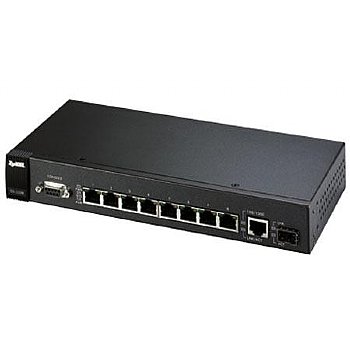

The ES-2108 Managed Layer 2 Fast Ethernet Switch Series is specially designed for small workgroup environments. Fan-less design eliminates annoying noise, which makes this unit suitable for noise-intolerant environments. This switch is equipped with a non-blocking 5.6 Gbps switching architecture for wire-speed transmission capability. Besides a default 8 10/100Mbps port, ES-2108-G features one dual personality Gigabit upper link port for flexible deployment and long-range connectivity.
ZyXEL ES-2108 Series is designed to serve diverse applications in various networking environments. For Quality of Service applications, the ES-2108 series comes with four priority queues per port for different types of traffic. In addition, DSCP is supported to realize an end-to-end QoS environment. For IP multicasting applications, ES-2108 series features IGMP snooping to optimize service quality. Also in bandwidth management, ES-2108 Series can support increments of 64Kbps to fulfill bandwidth differentiation.
The ZyXEL ES-2108 Series features VLAN function to secure your network: With 802.1Q tagged VLAN and port-based VLAN. With 4K PVID, you enjoy freedom in VLAN management. In addition to MAC filtering, MAC freezing and Specific MAC forwarding, the ES-2108 Series allows the network administrator to set security policy based on device MAC addresses.
Features:
 | Dual personality Gigabit uplink port for fast connection to the rest of your network |
| Fan-less design for noise-sensitive environment |
| Bandwidth control to ensure enough bandwidth for sensitive applications |
| IEEE 802.1Q VLAN Tagging and Port-based VLAN for flexible network topologies |
| MAC Filtering, Freeze, Intrusion Lock and Specific MAC Forwarding for enhanced security |
Specifications:
| Standard Compliance | IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-Tx Ethernet
IEEE 802.3ab 1000 Base-T Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE 802.3x Flow control
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port authentication
IEEE 802.3ad LACP aggregation |
| Non-blocking switching fabric | 3.6Gbps |
| Switching Forwarding Rate | 2.7Mpps (1488000pps/1000Base-T/1000Base-X, 148800pps/100Base-TX) |
| MAC | 8K MAC entries |
| Traffic Management and QoS | IEEE 802.1p with 4 priority queues per port for different traffic types
Supports DSCP
IEEE 802.1Q tag-based and port-based VLAN
Supports GVRP, automatic VLAN member registration
Supports IGMP snooping
Congestion control on all ports
Broadcast storm control
Rate limiting |
| Resilient Link and Link Aggregation | IEEE 802.3ad compliant
Supports LACP, static and dynamic link aggregation
Up to 2 aggregation groups, each group supports up to 4 ports (FE only).
IEEE802.1w Rapid Spanning Tree Protocol (RSTP) provides rapid convergence of
spanning tree independent of the spanning-tree timer |
| Security and Authentication | MAC filtering per port secures access to each port
Specific MAC forwarding per port allows only specified MAC addresses to access the network (port lock)
IEEE 802.1x port-based security preventing unauthorized users from accessing the network
256 static VLAN and up to 4K dynamic VLAN
Full range 4K PVID
MAC Freeze
Intrusion Lock |
| Network Administration | User name/password required for web/telnet/local console administrators
Two security levels with specific SNMP read/write community |
| Network Management | Supports ZyXEL iStacking where up to 24 switches can be managed by one IP address
Web-based management
Telnet CLI (Command Line Interface)
SNMP v2c
RS-232c local console
IP management: static IP or DHCP client
4 RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
Supports Source/Destination/Both port mirroring |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Console port | 1 D-Sub 9-pin Female (DCE) |

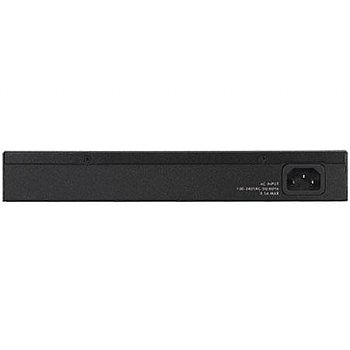

| Input voltage of AC | 100-240VAC, 50/60Hz |
| Max power rating of AC | 10 Watt |
| Operating temperature | 32deg.F - 113deg.F / 0 - 45deg.C |
| Storage temperature | -13deg.F - 158deg.F / -25 - 70deg.C |
| Operating humidity | 10% - 90% (non-condensing) |
| Dimensions | 9.8" x 5.3" x 1.4" / 250 x 135 x 35 mm |
| Weight | 2.6 lbs / 1.2 Kg |
| |
