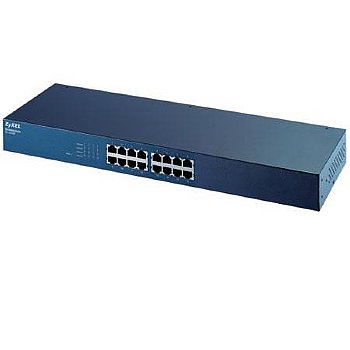

ZyXEL ES1016B 16 Port Fast Rackmount Ethernet Switch offer dependable switching capability in a rack mountable form factor. Available in both Faster, the ZyXEL ES1016B is the perfect way to add more ports to your network. All ports are plug and play, turn on your switch, plug in your network devices and away you go.
The full range of Rackmount Unmanaged Ethernet Switches, with 16-ports, is designed to boost your network with better performance and efficiency. With the N-Way auto-negotiation function, the ES-1016B connects the network counterparts with the highest possible network speed and activates duplex mode automatically.
Features:
 |
Unlike shared 10/100Mbps networks, the ZyXEL Rackmount Ethernet Switch Series, the ES-1016B, eliminates congestion by providing dedicated bandwidth. Its duplex mode doubles the effective bandwidth by enabling two-way communications |
|
The plug-and-play and multiple network protocol compatibility of ES-1016B make the installation and management easier and faster than ever |
|
The 19" size fits into your rack environment due to included rack mount brackets. No matter how intensive your network demands, ZyXEL's 16 rackmount unmanaged Ethernet switch supports your needs with an affordable and reliable network solution designed especially for small and medium businesses |
|
16 autosensing 10/100 full duplex ports for ease of use |
|
Full wire-speed store-and-forward technology support for best performance |
|
Auto-MDI/MDI-X functions support lets you use any CAT-5 cable |
Specifications:
| Standards |
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE802.3 Auto-negotiation
IEEE802.3x Flow Control |
| Data Transfer Rates |
Ethernet 10M/20Mbps (half/full duplex)
Fast Ethernet 100M/200M (half/full duplex) |
| Interface |
16 10/100BASE-T Ethernet ports |
| Network Cables |
10BASE-T: UTP Cat.3, 4, 5 (100 max.) EIA/TIA-586 100-ohm STP (100 max.)
100BASE-TX: UTP Cat.5 (100 m max.) EIA/TIA-568 100-ohm STP (100 max.) |
| Media Interface Exchange |
MDI-II/MDI-X auto-adjustment for each port |
| System Requirement |
Network card for each PC
Network Cables |
| Status LED |
System: power
Per Port: Link/Activity |
| Back Plane |
Non-Blocking full wire-speed forwarding rate: 4.8Gbps
Packet Forwarding Rate:
14880PPS for 10BASE-T
148800PPS for 100BASE-TX |
| Data Buffer |
1.25Mb |
| MAC Address Table |
8K entries |
| Power Requirement |
Power supply: 100 - 240VAC 50/60Hz internal universal power supply, 3.3V 4A |
| Power consumption |
7.26W (max) |
| Operating temperature |
0deg. C-50deg. C (32deg. F to 122deg. F) |
| Operating humidity |
10% to 90% (Non-condensing) |
| Dimensions (W x D x H) |
17.5"x 5.1" x 1.6" / 444.5 x 130 x 42 mm |
| Weight |
3lbs / 1370g |
|
|
