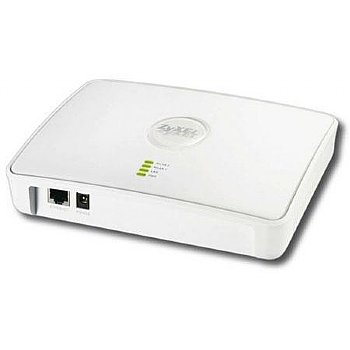

The ZyXEL NWA-8500 is an access point that receives power from a PoE (power over Ethernet) WLAN controller. The NWA-8500 does not require a power adapter or power cord. You can just deploy the NWA-8500 in you wireless network with a PoE wireless switch.
Specifications:
| Form Factor |
External |
| Connectivity Technology |
Wireless |
| Data Transfer Rate |
54 Mbps |
| Line Coding Format |
DBPSK, DQPSK, CCK, 64 QAM, QPSK, 16 QAM |
| Data Link Protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g |
| Communication Mode |
Half-duplex, full-duplex |
| Max Range Indoors |
330 ft |
| Max Range Open Space |
1310 ft |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g |
| Interfaces |
1 x network, Radio-Ethernet, 1 x network, Ethernet 10Base-T/100Base-TX, RJ-45 |
| Power Over Ethernet (PoE) |
Yes |
| Power Device |
Power adapter, external |
| Min Operating Temperature |
32 deg.F |
| Max Operating Temperature |
122 deg.F |
| Humidity Range Operating |
20, 95% |
| Dimensions (W x D x H) |
5.5 x 7.8 x 1.9"/13.97 x 19.81 x 4.82 cm |
| Weight |
14.8 oz/419.5 g |
|
|
