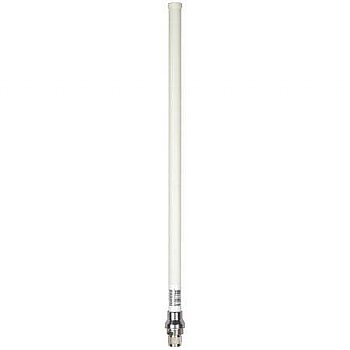

ZyXEL EXT108 8dbi Omni-Directional Outdoor Antenna is a wireless network antennas typically perform best in open environments with the least amount of obstructions possible. Performance may be significantly impaired if antennas are mounted near metal surfaces, concrete walls, or other high-density materials. To meet the challenge of these and other severe environments, ZyXEL offers performance-enhancing antennas for its ZyAIR family of wireless modems.
Specifications:
| Frequency range |
2400 MHz - 2500 MHz |
| Gain |
8.0 dBi |
| VSWR |
2.0: 1 Max |
| Polarization |
Linear, vertical |
| HPBW / horizontal |
360deg. |
| HPBW / vertical |
15deg. |
| Downtilt |
0deg. |
| Power handling |
10 W (cw) |
| Impedance |
50 Ohms |
| Connector |
N male |
| Survival wind speed |
216 km/hr |
| Temperature |
40deg. F - 176deg. F / 40deg. C - 80deg. C |
| Humidity |
95% @ 25deg. C |
| Lightning protection |
DC ground |
| Radome material |
Fiber glass |
| Dimensions |
2' x .7" / 630 x 19 mm |
| Weight |
13oz / 360 g |
|
|
