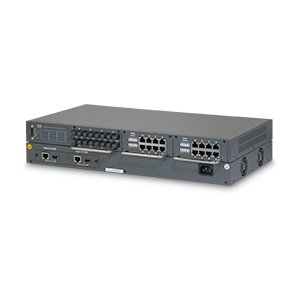

This Management Switch is a Layer2 Management switch with lots of advanced network functions including VLAN, trunking, spanning tree, mirror port, rate limit, IGMP and port configuration. Console is supported for command-line settings. Web, Telnet, and SNMP interfaces are for remote switch management through network. IEEE 802.1x is supported for port security application.
Features:
- Three modular design with 3 8-port Fast Ethernet module slots and 2 Gigabit combo ports
- Optional modules - 8-port 10/100TX, 8-port 100FX modules
- Provides wire speed store-and-forward switching
- SNMP, Telnet, Web, Console management support
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation
- Provides port ingress and egress rate control function
- Provides packet storm control function
- Provides port-based, 802.1Q tag-based VLAN function with GVRP support
- Support IEEE 802.1p Class of Service with 4-level priority queuing
- Support IEEE 802.1x Port security function
- Supports Spanning Tree Protocol
- Support IEEE 802.3ad LACP link aggregation compliant
- Supports IGMP snooping
- Support Static Mac address access limit on port
- Support Limited Mac address number on port
- Support Loopback detection function
- Support DHCP client function
- Support RMON 1,2,3,9
- Supports configuration file backup and download
