Honeywell's Genesis Series of broadband and digital coaxial cables are tested to the highest standards to assure the best performance in high-end home theater installations, incorporating HDTV and digital video. Honeywell also manufactures a wide variety of baseband coaxial cables for CCTV and other applications.

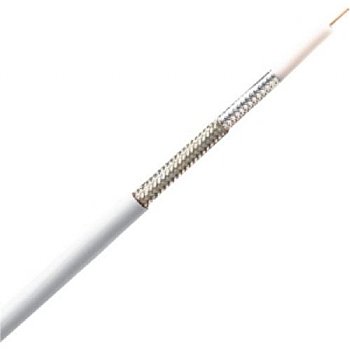

The Honeywell Genesis Cable 5356 series is a combination wire containing CL2P/FT6 RG6/U CCS Quad Shielded Coax CATVP/CL2P/FT6



Features

• Construction:
• Conductor 18 AWG Copper Covered Steel
• Insulation:
• Type Foamed FEP
• Thickness 0.069" nom.
• Diameter 0.170" nom"
• Shield:
• Tape 1 Aluminum - 100% coverage
• Braid 1 0.0063" nom. Aluminum Wire - 60% coverage
• Tape 2 Aluminum - 100% coverage
• Strands 2 0.0063" nom. Aluminum Wire - 40% coverage
• Jacket:
• Type Plenum PVC
• Color Natural
• Thickness 0.022" nom.
• Diameter 0.276" nom.
• Legend (Ink Print)HONEYWELL P/N 5356 BROADBAND PREMIUM RG 6/U 18 AWG QUAD SHIELD 3038058 (ETL) CATVP OR CL2P W/O# XXXXXX-XXX XXXXFT (RoHS) CATV/SATELLITE A B C D E F 1 2 3 4 5 6 7 8 9
• Properties:
• Temperature Rating -20 to 75 ™C
• Capacitance 16.7 pf/ft nom.
• Impedance 75 Ohms nom.
• Vel™City of Propagation 82%
• Resistance 29.0 Ohms/M' at 20™C
• Attenuation (db/100') 0.47 at 1 MHz, 3.75 at 400 MHz, 6.5 at 1000 MHz, 7.7 at 1500MHz
• Flame Rating UL 910 Plenum, NFPA 262, C(ETL) FT6
