50021101

SKU: 50021101

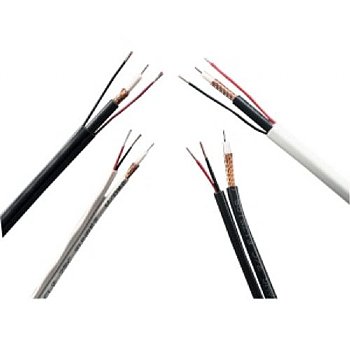

Genesis Cable Systems RG6/U 18G Coaxial 95% 1M Box White
List Price: $349.80
Price: $231.00
You Save: $118.80 (34%)
50021101
50021101
Product Details
Applications: Wiring Burglar alarm, public address systems, intercoms, telephone stations, speakers, instrumentation, control and other low voltage circuits that are power limited.

Code Restrictions: OK for use with all (Non-Fire) power limited circuits except those in risers and plenums

Features: Available in 500ft or 1000ft Tangle-Free Boxes or Spools. Sequential Footage Markings.

Construction: Copper Conductors, Genelene Insulation, Flexible Polyvinyl-Chloride jackets. Standard Jacket color: Gray

Features
  • Construction:
  • Conductor 18 AWG Solid Bare Copper
  • Insulation:
  • Type Foamed Polyethylene
  • Color White
  • Thickness 0.070" nom.
  • Diameter 0.180" nom"
  • Braid:
  • Strands 0.005" nom. Bare Copper
  • Percentage Coverage 95 nom.
  • Jacket:
  • Type PVC
  • Color Black,White
  • Thickness 0.035" nom.
  • Diameter 0.275" nom.
  • Legend (Ink Print): HONEYWELL P/N 5002 CCTV PREMIUM RG 6/U 18 AWG 3038058 (ETL) CL2 75C SUN RES.(RoHS) W/O XXXXXX-XXX XXXX FT CAMERA/ZONE A B C D E F 1 2 3 4 5 6 7 8 9
  • Properties:
  • Temperature Rating -20 to 75�C
  • Voltage Rating 300V
  • Capacitance 17.3 pf/ft nom.
  • Impedance 75 Ohms nom.
  • Vel�City of Propagation 78%
  • Resistance 7.5 Ohms/M' at 20�C
  • Attenuation (db/100') -0.32 at 1 MHz, -5.15 at 400 MHz, -8.74 at 1000 MHz
  • Flame Rating UL 1685 Vertical Tray
