Applications: Wiring of Fire protective signalling circuits.
Code Restrictions: OK for use with all power limited circuits except those in plenums.
Features: Available in 500ft or 1000ft Tangle-Free Boxes or Spools. Sequential Footage Markings.

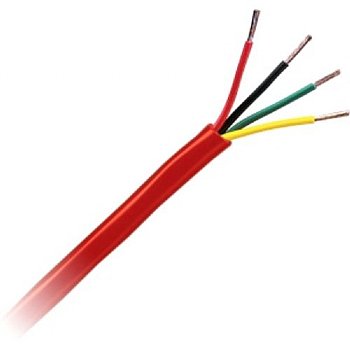

Construction: Copper Conductors, Genelene Insulation, Polyvinyl-Chloride Jacket. Standard Jacket Color: Red.
Features
- Construction:
- Conductor 18 AWG Solid Bare Copper
- No. of Conductors 4
- Insulation:
- Type Polypropylene
- Color Black, Red, Yellow, Green
- Thickness 0.009" nom.
- Diameter 0.052" nom"
- Lay Length 2.5" nom.
- Jacket:
- Type PVC
- Color Red
- Thickness 0.015" nom.
- Diameter 0.174" nom.
- Legend (Ink Print) HONEYWELL P/N 4307 4C18 3038058 (ETL) FPLR OR CL2R C(ETL)US FT4 SUN RES RoHS) W/O# XXXXXX-XXXXXX XXXXFT DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9
- Properties:
- Temperature Rating -20 to 75�C
- Operating Voltage 300 Volts max.
- Capacitance 21 pf/ft nom.
- Impedance 75 Ohms nom.
- DC Resistance 6.5 Ohms/M' at 20�C
- Flame Rating UL 1666 (Riser),C(UL) FT4
