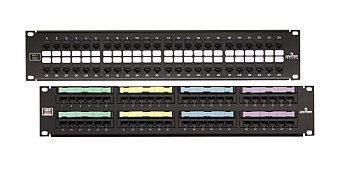

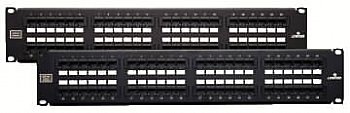

Leviton 5G596-U24, GigaMax 5e Patch Panels and Patch Blocks are ideal for modular cross connection and available in a multitide of port densities to meet the needs of high-speed data applications. Craft-friendly 110 punchdowns on the rear of the panel make installation easy.



The patch panel meets or exceeds the requirements for Category 5e described in TIA/EIA-568-B as well as the Class E requirements described in ISO/IEC 11801-B. The panels feature both T568A and T568B wiring configurations, white IDC 110-punchdown modules, mounting standoffs for cable management bars, color-coded front window labeling, and a termination standoff for patch panel earthing/grounding. The panels have universal T568A and T568B wiring card for terminations. Made of 16 gauge steel, they have a black painted finish with white silk-screening. The plastic elements are fire-retardant with a UL flammability rating of 94V-0. The patch panel is configured with six port modules. The 110 termination on the rear of the panel follows normal installation color sequence (blue, orange, green, brown) from left to right.
