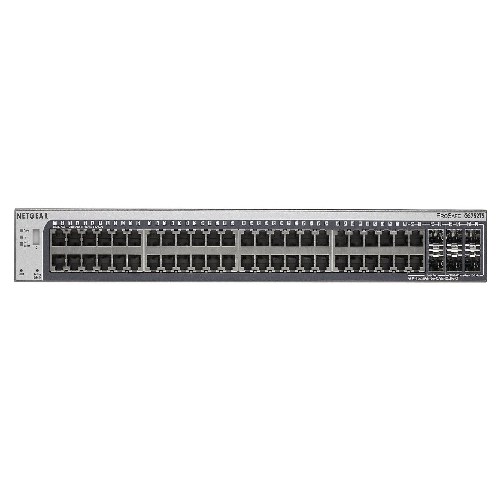

ProSafe Gigabit 48 Port Stackable Smart Switch
The stacking function offers a 10 Gbps, dual-ring, highly redundant stacking bus that carries intra-stack traffic and provide the highest level of resilience, allowing you to stack up to six switches or up to 300 10/100/1000 Mbps ports, forming a virtual chassis for easy management under a single IP address
Offers auto voice and auto video features that automatically configure QoS, security, and VLAN settings for IP phones and IP cameras
Total Ports: 30
Gigabit Ethernet Ports: 24 RJ45
SFP Ports: 2 combo, 4 dedicated
IEEE Protocols: 802.3, 802.3u/ab, 802.3z, 802.3x, 802.3az, 802.3ad, 802.1Q, 802.1p, 802.1D, 802.1w, 802.1s, 802.1x
Power Requirements: 100-240V, 50-60Hz adapter
Bandwidth: 104 Gbps
Forwarding Modes: Store and forward
Buffer Packet Memory: 2 MB
Address Database Size: 16,000
Network Latency: less than 20 microseconds for 64-byte frames in store and forward mode for 1000 Mbps to 1000 Mbps transmission
Mean time between failures (MTBF): 102,616 hours at 55 degrees celcius
Number VLANs Supported: 256
Number ACLs (IPv4/IPv6): 100
IGMP Snooping v1/v2/v3
MLD Snooping
SNMP v1/v2c/v3
Port Mirroring
Cable Test utility
Security: 802.1x RADIUS Authentication, HTTPS/SSL Secure HTTP GUI, Broadcast/Unicast/Multicast Protection
Package Contents: Gigabit Switch, 2.5G SFP direct attach cable for stacking, rubber footpads, power cord, rack-mount kit, Resource CD, warranty/support information card
