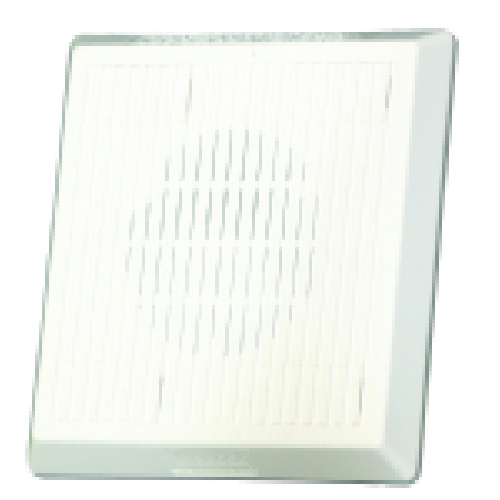

The Wheelock Series AMT Multiple Input Electronic Appliances provide the industry with a UL Standard 1971 and UL Standard 464 combination audible/visual device that simplifies installation and offers three (3) distinct prioritized audible signals from three isolated inputs. Priority (1) will override all other commands upon activation.
The AMT offers a choice of eight (8) self-prioritized sound combinations for suppression releasing systems, combination security and emergency evacuation systems and high risk installations as well as many other applications.
The AMT Strobes are designed for ADA applications while meeting or exceeding the latest requirements of NFPA 72 (the National Fire Alarm Code), ANSI 117.1 (the American National Standard For Accessible and Usable Buildings and Facilities) and UL Standard 1971 (Standard for Signaling Devices for the Hearing Impaired).
Each AMT Audible and AMT Strobe appliance has two user selective sound output levels: STANDARD dBA and HIGH dBA. The AMT Audible provides 12VDC or 24VDC operation, filtered or FWR. The AMT Strobe Electronic Appliances operate at 24VDC and may be used with filtered or unfiltered (full-wave-rectified) input voltages. Separate supervised sets of input terminals are available for each prioritized input. Jumper plugs are provided to enable both tone and strobe to operate simultaneously for all inputs.
The AMT Multitone Strobe Appliances are UL Listed for indoor use, wall mount, under Standard 1971 for Signaling Devices for the Hearing Impaired and Standard 464 for Audible Signal Appliances, and use a Xenon flashtube with solid state circuitry enclosed in a rugged Lexan® lens to provide maximum reliability for effective visible signaling.
Features:
•Approvals include: UL Standard 1971, UL Standard 464 and New York City (MEA) ULC
• Compliance with RFI limits in FCC Part 15, Class B for compatibility with sensitive detection and communication circuits
• Designed to meet or exceed NFPA/ANSI Standards and ADA Accessibility Guidelines. Meets OSHA 29 Parts 1910.165
• Three separate prioritized inputs that will activate three isolated signals
• All inputs are supervised
• Code-3 Horn and Tone meet ANSI/NFPA/ISO temporal pattern.
• Two power taps for high dBA and standard dBA @ 10 feet
• Low current draw with low temperature compensation to reduce power consumption and wiring costs
• AMT Strobe models available with 15/75 and 75 candela ratings for independent or combination input activations
• AMT with strobe can flash independently or in unison with all audible signals
• 12VDC and 24VDC models with wide listed voltage range, filtered (DC) and FWR. (AMT Strobe version in 24 volts only.)
• Polarized inputs for compatibility with standard reverse polarity type supervision of circuit wiring by an alarm panel
• Low cost installation via standard electrical boxes. Attractive flush or surface mounting options
• No additional trimplate required for flush mounting. Fast installation with In/Out screw terminals using #12 to #18 AWG
