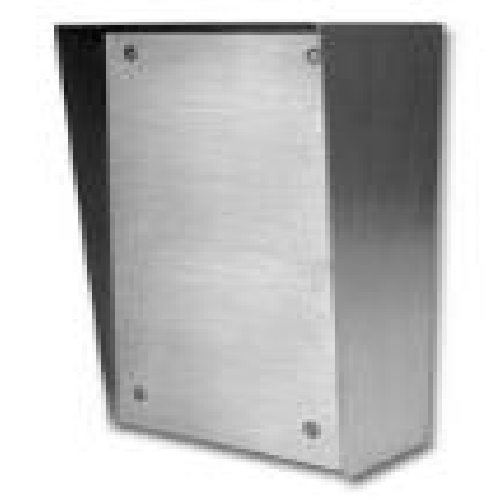

The VE-5x10-PNL-SS is the perfect solution to the problem of mounting a switch, keypad or card reader to the outside of a building. Built from 0.062 stainless steel, the back box provides the durable enclosure required for outdoor applications.

The blank front panel is made from aluminum, making it easy to drill, cut or form for the required mounting arrangement. The panel is straight lined and coated with a tough clear powder coating to resist corrosion. Four screws and a gasket are included to make installation a snap.

For outdoor mounting of: • Push buttons • Keypads • HID-1 Card Readers • Key Locks

• Rugged stainless steel back box • Easy to machine aluminum front panel • Clear powder coating on front panel • Gasket and screws included

Box
• Material: 0.062” stainless steel
• Dimensions: 5.22" x 10.14" x 3.69"

  Panel
• Material: 12 gauge aluminum
• Finish: UV stable clear gloss powder paint
• Dimensions: 5" x 10"
