E-1600-02-IPEWP

Our Products: IP/Network Camera’s > Intercom Units
SKU: E-1600-02-IPEWP
Brand: Viking Electronics

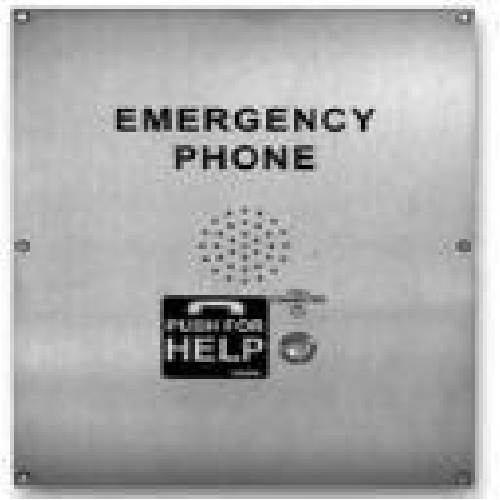

E-1600-02-IPEWPVoIP Stainless Steel Handsfree Emergency Phone, with Voice, Flush Mount Only with Enhanced Weather Protection
UPC: 615687225891
List Price: $976.00
Price: $469.00
You Save: $507.00 (52%)
Add to Wishlist Add to Wishlist
E-1600-02-IPEWP
E-1600-02-IPEWP
Previous Item Previous Item   Next Item Next Item
Product Details

  • ADA Compliant VoIP Emergency Phones with Built-In Dialer, Digital Voice Announcer, and Enhanced Weather Protection



    The 1600-IP Series ADA Compliant VoIP Emergency Phones are designed to provide quick and reliable handsfree communication for any LAN with PoE. All 1600-IP Series phones meet ADA requirements for elevator/ emergency telephones, and can be programmed from any Touch Tone phone or PC on the same LAN. The phones can dial up to 5 programmable emergency numbers. In addition, the E-1600-20-IP and E-1600-52-IP feature a second "INFO" button that will dial up to 5 non-emergency numbers.

    The 1600-IP Series phones can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A "Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.

    For outdoor installations where the unit is exposed to precipitation or condensation, select 1600-IP Series phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD# 859.



    Applications

    • Elevators
    • Parking ramps/lots
    • Emergency pool phones
    • ATM machines
    • Area of refuge locations
    • Medical centers
    • Lobbies
    • Entryways
    • Campus emergency stations
    • Stadiums
    • Convention centers
    • Public access areas

    Features

    • Self diagnostic reports via email (testing com, mic, speaker & switch)
    • Automatic polling and programming software included
    • 2 Amp relay contacts for door/gate or SL-2 strobe light control
    • SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
    • PoE powered (class 1, <4 watts)
    • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
    • Network downloadable firmware
    • Meets ADA requirements for Emergency Phones:
      - Automatically lights the "Call Connected" LED
      - Transmits a unique location I.D. code or voice announcement
      - Grade 2 Braille label for the visually impaired
    • Non-volatile digital voice announcer with 28 seconds of voice memory
    • Handsfree operation
    • Marine grade 316 stainless steel prevents corrosion on the stainless steel models
    • Dials up to 5 emergency numbers
    • E-1600-20-IP and E-1600-52-IP dial up to 5 non-emergency "INFO” numbers
    • Cycles through backup phone numbers on busy or no-answer
    • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
    • Hangs up on busy signal, time-out or touch tone command
    • Remotely programmable
    • Extended temperature range (-15°F to 130°F)
    • 11 different chassis or board only available
    • Available in 42” tower phone model E-1600-BLT-IP-EWP (DOD# 217)
    • Optional PB-100 Polling System available (DOD# 232)
    • Optional SL-2 or BLK-4-EWP strobe light kit available (DOD# 242/653)
    • Optional E-1600A-MK-GNP Pedestal Mounting Kit (DOD# 227)

    Specifications

    • Power: PoE class 1 (<4 watts)
    • Dimensions: See Installation and Specifications
    • Operating Temperature: -26° C to 54° C (-15°F to 130°F)
    • Humidity - Standard Products: 5% to 95% non-condensing
    • Humidity - EWP Products: Up to 100%
    • Audio Codecs: G711u, G711a, G722
    • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
