The E-60-IP Series are compact, vandal resistant VoIP Entry Phones designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The E-60-IP Series entry phones can be programmed from any Touch Tone phone or PC on the same LAN. The entry phones can dial up to 5 programmable numbers.

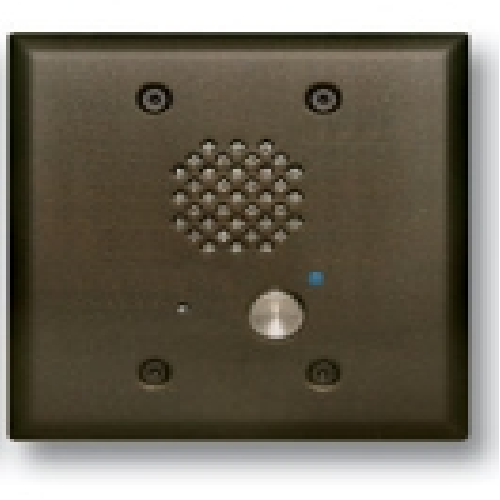

The E-60-IP’s compact size allows it to be mounted in a standard double gang electrical box. The E-60-IP is available in four different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-60 faceplates (PNL60) can be purchased separately and are available in all four standard finishes. The E-60- IP’s blue LED continually provides light for locating the push button in dark locations, flashes during dialing and automatically lights again when the call is answered. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.
For outdoor installations where the unit is exposed to precipitation or condensation, the E-60-IP Series entry phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards.
Applications
- Gate Entrance
- Parking ramps/lots
- ATM machines
- Medical centers
- Lobbies
- Entryways
- Stadiums
- Convention centers
- Public access areas
Features
- Compact: Front panel is the size of a typical double gang mid-size wall plate
- Mounting: Flush mounts in a double gang electrical box (2.25” deepx 3.65” wide x 2.84” tall minimum) or surface mounts in a Viking VE-5x5 (not included, see DOD# 424) for mounting to a wall, post or VE-GNP Gooseneck Pedestal (EWP recommended)
- Available in 4 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Textured Black and Satin White
- PNL-60 faceplates: Replacement faceplates with matching screws available in all four standard finishes
- Self diagnostic reports via email (testing com, mic, speaker & switch)
- Automatic polling and programming software included
- 2 Amp relay contacts for door/gate or SL-2 strobe light control
- Blue LED indicator
- SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
- PoE powered (class 1, <4 watts)
- Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
- VoIP eliminates the need for "Push to Talk” mode
- Network downloadable firmware
- Handsfree operation
- 304 stainless steel prevents corrosion on the stainless steel models
- Programmable to dial up to 5 numbers on busy or ring no answer
- Cycles through backup phone numbers on busy or no-answer
- Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD# 859
- Hangs up on busy signal, time-out or touch tone command
- Remotely programmable
- Extended temperature range (-40°F to 140°F)
- Volume adjustments for microphone and speaker
- Optional PB-100 Polling System available (DOD# 232)
- Optional SL-2 or BLK-4-EWP strobe light kit available (DOD# 242/653)
Specifications
- Power: PoE class 1 (<4 watts)
- Dimensions: Faceplate: 123.8mm x 125.4mm x 4.3mm (4.875” x 4.938” x 0.17”), Phone: 72mm x 46mm x 42mm (2.84” x 1.8” x 1.65”)
- Shipping Weight: 0.55 kg (1.2 lbs)
- Operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Humidity - Standard Products: 5% to 95% non-condensing
- Humidity - EWP Products: Up to 100%
- Audio Codecs: G711u, G711a, G722
- Network Compliance: IEEE802.3af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
- Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
