The E-10/20/30-IP VoIP Entry Phones are designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The E-10/20/30-IP entry phones can be programmed from any Touch Tone phone or PC on the same LAN. The Entry phones can dial up to 5 programmable numbers.

The E-10/20/30-IP entry phones will flash the "Call” LED during dialing and automatically light the LED when the call is answered. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. All units are PoE powered.

For outdoor installations where the unit is exposed to precipitation or condensation, the E-10/20/30-IP Entry phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD# 859.

Applications

• Gate Entrance
• Parking ramps/lots
• ATM machines
• Medical centers
• Lobbies
• Entryways
• Stadiums
• Convention centers
• Public access areas

Features

• Self diagnostic reports via email (testing com, mic, speaker & switch)
• Automatic polling and programming software included
• 2 Amp relay contacts for door/gate or SL-2 strobe light control
• SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• Network downloadable firmware
• Handsfree operation
• Marine grade 316 stainless steel prevents corrosion on the stainless steel models
• Programmable to dial up to 5 numbers on busy or ring no answer
• Cycles through backup phone numbers on busy or no-answer
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD# 859
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• 3 different chassis or board only available
• Volume adjustments for microphone and speaker
• E-10-IP and E-30-IP are flush mountable using the included rough-in box or can be surface mounted using an optional VE-5x5 Surface Mount Box (DOD# 424)
• Optional PB-100 Polling System available (DOD# 232)
• Optional SL-2 or BLK-4-EWP strobe light kit available (DOD# 242/653)

Specifications

• Power: PoE class 1 (<4 watts)
• Dimensions: See Installation and Specifications
• Operating Temperature: -26° C to 54° C (-15°F to 130°F)
• Humidity - Standard Products: 5% to 95% non-condensing
• Humidity - EWP Products: Up to 100%
• Audio Codecs: G711u, G711a, G722
• Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

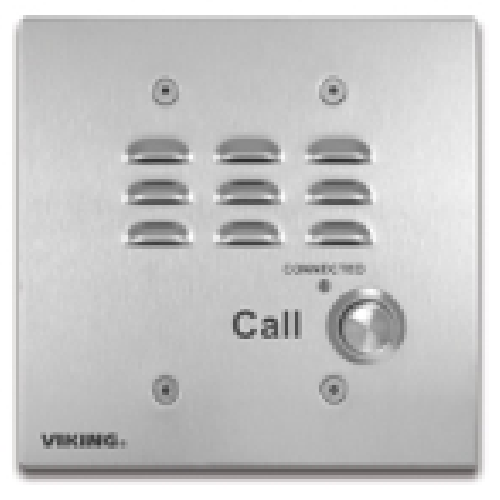

 IMAGE MAY NOT BE CORRECT
