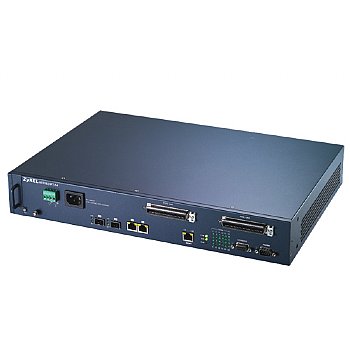

ZyXEL's VES1624FT-54 is a 24-port VDSL2 aggregator based on Discrete Multi-Tone (DMT) modulation and the latest Ethernet technologies; it aggregates traffics from ZyXEL DMT-based VDSL CPE and complies with the VDSL2 G993.2 standard.

The VES1624FT-54 multiplexes data traffics into two 100/1000Base-T uplinks/downlinks (2 SFP combo) that connect to any third-party Ethernet switch, WAN router or VDSL Switch cascade, while the built-in POTS splitter splits and sends voice traffics to the PSTN. The VES1624FT-54 supports VDSL2 downstream speeds of up to 100 Mbps and VDSL2 upstream speeds of up to 50 Mbps.

The VES1624FT-54 provides a rich set of features and ensures interoperability with equipments from other vendors. The features include IGMP snooping, Multicast VLAN Registration (MVR), broadcast storm control and MAC filtering. IGMP snooping and MVR are very useful features for VoD/MoD whereas MAC filtering enhances security and bandwidth utilization. With a broad array of advanced, fully integrated technologies, the VES1624FT-54 enables service providers and system administrators to build cost-effective, full-service networks that enable all kinds of media-rich applications. It also provides QoS features within VDSL2 links.





	VDSL link for downstream/upstream: 100/50 Mbps
	2-slot 100/1000Base-T Ethernet and 2-slot Gigabit Fiber uplink/downlink (combo)
	IP QoS support: VLAN, Multicasting and Priority queue, classifier and policy rule and traffic shaping supported
	802.1x Service Authentication
	Offer a rich set of advanced features such as IGMP snooping, MVR, MAC filtering
	SNMP management support/Web GUI management/CLI management supported





IP features	3 MVR each with 256 rules address range IGMP filter IGMP snooping and fast leave supported Unknown multicast group drop, broadcast storm/unknown multicast/DLF control Static multicast group support DHCP relay and option 82 802.1x port authentication by RADIUS
Hardware	RoHS compatible DMT line code for VDSL2 modulation VDSL2 speed up to 100Mbps/50Mbps One Telco 50 for 24 VDSL ports One Telco 50 for 24 POTS ports One Console port for local management One MGMT port AC/DC dual power Two dual personality interface (2 copper/ fiber combo ports) Temperature, voltage and FAN monitoring and alarm Surge protection to prevent lightning damage Temperature harden design Build-in 3/4 alarm input and 1 alarm output
Power consumption	72 Watts
Operating environment	Temperature: 0deg. C - 65deg. C Humidity: 10% - 90%
Storage environment	Temperature: -40deg. C - 70deg. C Humidity: 0% - 90%
Dimensions (W x H x D)	440 x 250 x 66 mm / 17.32 x 9.84 x 2.6 in
Weight	5500 g / 10.84lbs
