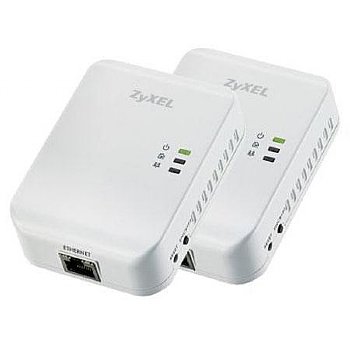

Designed for high performance, your powerline network can reach the data transfer rates up to 200Mbps. With advanced HomePlug AV technology, the PLA-401 v3 provides users the stable and high-speed Internet access. You just plug a pair of powerline Ethernet adapters into your house power outlets and easily enjoy high-definition video streaming and network transmission.
The advanced QoS features of ZyXEL's HomePlug AV Series improve the quality of multimedia streaming applications such as triple-play services, video streaming, high-speed Internet access and VoIP. The ZyXEL PLA-401 v3, a powerline adapter consumes 16% less power when comparing to the existing powerline Ethernet adapters. Moreover, when there is no Ethernet link, the PLA-401 v3 will enter the "Standby" mode that reduces energy wasting for over 50% when comparing to the adapters without this feature.
Specifications:
| Form Factor |
External |
| Connectivity Technology |
Wired |
| Data Transfer Rate |
200 Mbps |
| Line Coding Format |
64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, ROBO, 1024 QAM |
| Data Link Protocol |
Ethernet, Fast Ethernet, HomePlug AV (HPAV) |
| Spread Spectrum Method |
OFDM |
| Status Indicators |
Link activity, power |
| Compliant Standards |
HomePlug AV |
| Interfaces |
1 x network, Ethernet 10Base-T/100Base-TX, RJ-45, 1 x network / power, HomePlug AV |
| Encryption Algorithm |
128-bit AES |
| Compliant Standards |
Plug and Play, CE, UL, cUL, FCC, RoHS |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Min Operating Temperature |
32 deg. F |
| Max Operating Temperature |
113 deg. F |
| Dimensions (W x D x H) |
2.8" x 2.6" x 3.7" / 7.11 x 6.60 x 9.39 cm |
| Weight |
5.6 oz / 158.75 g |
|
|
