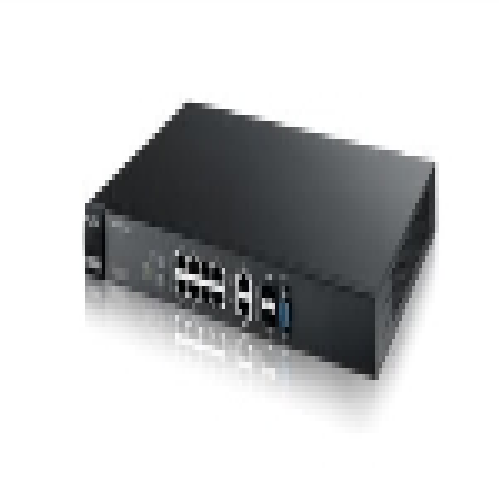

The ZyXEL GS2200-24P incorporates a high-performance switching architecture that provides 56 Gbps non-blocking switch fabric, 41.7 million packets per-second forwarding rate and wire-speed performance to connect high performance desktop devices with resources at the heart of the network. In addition, the GS2200-24P is optimized for high-density Gigabit Ethernet deployments and is suitable for both the core and the edge of the network.





Standard Compliance	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Ethernet IEEE 802.ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE 802.3x flow control IEEE 802.1D spanning tree protocol IEEE 802.1w rapid spanning tree protocol IEEE 802.1s multiple spanning tree protocol IEEE 802.1p class of service, priority protocols IEEE 802.1x port authentication IEEE 802.3ad LACP aggregation
Traffic Management and QoS	Rate limiting: Rule-based/port-based bandwidth control, 64 kbps granularity Broadcast storm control IEEE 802.1p with 8 priority queues per port for different traffic types WRR (Weighted Round Robin)/SPQ/ WFQ scheduling algorithm Supports DSCP Supports DSCP to 802.1p priority mapping Supports IGMP/IGMP snooping v1, v2, v3 Congestion control on all ports
Link Aggregation	IEEE 802.3ad LACP link aggregation compliant Support static manually port trunking Up to 6 aggregation groups, 8 ports/per group randomly selected
Resilient Network	IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) PPS (PoE Power Supply) support to be a full power budget PoE device
User Security and Authentication 1	MAC filtering per port secures access to each port IEEE 802.1Q tag-based and port-based VLAN Support GVRP, automatic VLAN member registration 1K static VLAN, up to 4K dynamic VLAN Full range 4K PVID support Port-base VLAN & VLAN isolation Intrusion lock MAC freeze Specific MAC forwarding per port: only specified MAC addresses can access the network (Port security)
User Security and Authentication 2	Limited MAC number per port IP source guard Loop guard RADIUS MAC login IP filtering TCP/UDP socket filtering BPDU transparency 802.1x port-based authentication, compensated assignment over VLAN and bandwidth for valid access TACACS+
Network Administration Security	User name/password required for Web/Telnet/local console administrators Two-level security by specific SNMP read/write community Multiple login session Multiple access permission management SSH v1/v2 SSL
Network Management	Supports ZyXEL iStacking, up to 24 switches can be managed by one IP address Web-based management Telnet CLI SNMP v1, v2c, v3 RS-232c local console IP management: static IP or DHCP client RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis Port mirroring: supports source/destination/both port mirroring
Intelligent ACL	Based on MAC address Based on VLAN Based on IP address Based on Protocol type Based on TCP/UDP type Based on DSCP(L2/L3/L4 Access List Control)
MIB Information	RFC 1066 TCP/IP-based MIB RFC 1213, 1157 SNMP v2c/v3 MIB RFC 2011, 2012, 2013 SNMP v2 MIB RFC 1493 bridge MIB RFC 2674 bridge MIB extension RFC 1643 Ethernet MIB RFC 2358 Ethernet-like MIB RFC 1757 RMON group 1, 2, 3, 9 RFC 2819, 2925 Remote Management MIB RFC 3621Power Ethernet MIB ZyXEL private MIB
Port Density	10/100/1000Base-T PoE: 24 Dual Personality GbE Ports: 4
Switching Capacity	56Gbps
Switching Forwarding rate	41.7Mpps
Packet buffer	448KB
MAC address	16K
Input Voltage of AC	100 - 240V AC, 50/60 Hz
Maximum power consumption	268 watt
Operating Temperature	0deg. C to 50deg. C
Storage Temperature	-25deg. C to 70deg. C
Operating Humidity	10% - 90%, (non-condensing)
Dimensions (W x D x H)	440 x 310 x 43 mm / 17.32" x 12.20" x 1.69"
Weight	2.5 kg / 5.51 lbs





	The GS2200-24P is easy to use and manage the applications that are needed to support the business and increase productivity
	The GS2200-24P provides rich features including VLANs, CoS/QoS, Port Trunking, Rapid Spanning Tree, Security (Port Security and 802.1x authentication) and network management to meet evolving SME requirements
	ZyXEL's Intelligent PoE features provide 2 power supply modes: Classification mode: the switch reserves the maximum power (W) to each powered device (PD) according to the priority levels; Consumption mode: the switch manages the entire power supply, so each connected PD get the actual power it need
	Advanced L2 switching features
	56 Gbps non-blocking switch fabric
	4 Dual-personality (RJ-45/SFP) GbE interfaces
	Port security and enhanced 802.1x port authentication
	MAC freeze and intrusion lock
	8 IEEE 802.1p hardware priority queues
	WFQ, WRR and SPQ queuing algorithms
	IEEE 802.3af Power over Ethernet
	PoE Power consumption mode for energy saving
