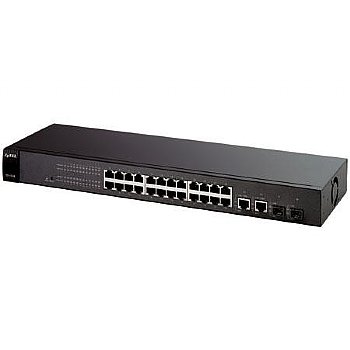

ZyXEL ES-1528 comes with 24 Fast Ethernet copper ports plus four Gigabit uplinks (two 1000Base-T ports and two SFP slots) that fire up the non-blocking connection power to 12.8Gbps on SMB/SB networks and its multi-function design fits into copper or fiber networks easily. By utilizing 4G uplinks and port aggregation, bandwidth on critical paths can be expanded flexibly by merging multiple traffic pipelines into a logical one to dramatically improve network stability.





	While many legacy Web Smart switches improve manageability, complexity is still a challenge. For most SMBs, inadequate IT expertise and complicated configurations are the major obstacles to overcome before getting connected. Powered by the newest hardware platform with smart ACL technology
	The ZyXEL ES-1528 comes with a streamlined and intuitive Web-GUI for features demanded by SMB; such as 802.1Q VLAN, 802.1p traffic priority and static port aggregation. Requiring no awkward configurations or bulky user guide, the ES-1528 provides valuable features and convenience for SMBs
	ZyXEL is highly aware that network security is a top priority for SMBs and has therefore enabled the ES-1528 to effectively combat DoS attacks. Equipped with Auto DoS Attack Prevention, the ES-1528 is capable of fighting against ubiquitous DoS attacks
	ES-1528 supports 802.1Q VLAN for traffic isolation, as well as static MAC forwarding and dynamic ARP to establish a strictly protected network
	It usually requires IT expertise to optimize a network for VoIP applications. With the emergence of the "Auto VoIP", however, the ES-1528 can identify VoIP packet patterns and grant the highest priority to establish a VoIP-friendly communication automatically
	Auto VoIP offers IP telephony without configuration headaches. Features like four priority queues and a WFQ scheduling algorithm allows users to optimize network bandwidth usage and Quality of Services
	Advanced features with a simplified interface makes configuration a snap: Auto DoS Attack Prevention & Auto VoIP
	12.8 Gbps Non-blocking Switching Fabric for the fastest speeds
	Flexible 4 GbE Uplink Interfaces provide maximum speed between switches





Standard Compliance	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100 Base-Tx Ethernet IEEE 802.ab 1000 Base-T Ethernet IEEE802.3ah 1000Base-BX IEEE 802.3z IEEE 802.3x Flow control IEEE 802.1p Class of service, priority protocols IEEE 802.1Q VLAN tagging IEEE 802.3ad static port aggregation
Non-blocking switching fabric	12.8Gbps
Switching Forwarding Rate	9.6Mpps (1488000pps/1000Base-T/1000Base-X, 148800pps/100Base-TX)
Wire-speed performance	Yes
MAC and Packet Buffer	8K MAC entries 512KB Packet Buffer
Traffic Management and QoS	Rate Limiting: Port-based bandwidth control with 7 grades 64kbps, 256 kbps, 1Mbps, 10Mbps, 64Mbps, 100Mbps, 1Gbps) Port-based egress traffic shaping Broadcast Storm Control Congestion control on all ports IEEE 802.1p with 4 priority queues per port for different types of traffic WRR (Weighted Round Robin)/SPQ scheduling algorithm
Link Aggregation	IEEE 802.3ad static port aggregation Up to 6 aggregation groups, per group supports up to 8 ports
User Security and Authentication	Specific MAC forwarding per port: only specified MAC addresses can access the network (Port Security) IEEE 802.1Q tagged VLAN 256 static VLAN, up to 4K dynamic VLAN Dynamic ARP
Network Administration Security	Password required for administrators
Network Management	Web-based management SNMP v1, v2 IP management: static IP RMON Port mirroring: supports Source/Destination/Both port mirroring Cable Diagnostic
MIB Information	RFC1213MIBII (System, Interface) RFC1398 (Ether-like)

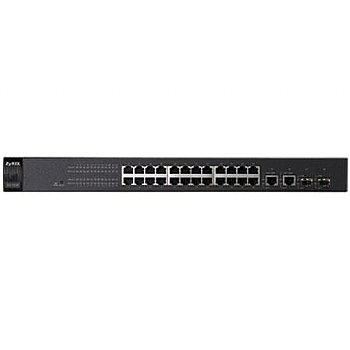

Hardware Requirements	Support of auto-negotiation Support of auto MDI/MDI-X Ports: 24 10/100BASE-T, RJ-45 ports, 2 1000Base-T ports and 2 SFP open slots
Input voltage of AC	100-240VAC, 50/60Hz
Max power rating of AC	11.6 Watt
Operating temperature	32deg. F - 113deg. F / 0deg. C - 45deg. C
Storage temperature	14deg. F - 158deg. F / - 10deg. C - 70deg. C
Operating humidity	10%-90%, (non-condensing)
Dimensions (W x D x H)	17" x 5" x 1.75" / 438 x 130 x 44.5 mm
Weight	4.3lbs / 1.95kg
