The P-793H is a high performance G.SHDSL Gateway providing Internet access and LAN-to-LAN application over existing copper line for small/medium office. The P-793H makes full use of the advanced G.SHDSL.bis technology to offer data transmission rates of up to 5.69Mbps in 2-wire mode. In 4-wire mode, you can get up to twice the transmission speed at 11.38Mbps.

ZyNOS ensures state-of-the-art firewall performance and robust security from the P-793H. Based on Stateful Packet Inspection (SPI), Denial of Service (DoS) and DDoS features, it provides the first line of defense against hackers, network intruders and other malicious threats. Furthermore, its VPN feature supports data encryption over the Internet to ensure secure data transmission between two sites. VPNs can be used to replace a private leased line, allowing global interconnectivity with minimal expense.

The P-793H enables network administrators to allocate network resources to guarantee Quality of Service (QoS). The Media Bandwidth Management (MBM) function prioritizes services and increases productivity and efficiency in daily operations by tailoring bandwidth allocation to specific demands such as VoIP, video streaming, video-conferencing or interactive game applications.

The P-793H features a Fail-over and Fail-back WAN Backup Solution for complete network reliability. When the DSL connection fails, traffic is forwarded to either the backup ISDN or analog modem to maintain smooth data transmission. When the DSL connection is re-established, network traffic through the P-793H will resume again.





	Ideal lease line replacement for small to medium size businesses
	Symmetric data rates of up to 11.38Mbps
	Port based VLAN
	4 wire bonding
	2-wire/4-wire Mode Selectable
	TR-069 (HTTP) for Easy Deployment
	Robust, State-of-the-Art Firewall Security
	Media Bandwidth Management (MBM) and IP Quality of Service ideal for Voice and Data
	Back to back configuration
	LAN extensions service replacement



G.SHDSL Compliance	ITU-T 991.2 G.SHDSL and G.SHDSL.bis Standard Symmetric data transmission speed up to 5.69 Mbps (2-wire mode) or 11.38 Mbps (4-wire mode) Auto-negotiation rate adaptation and manually rate configuration Server/Client mode selectable
ATM Protocol	ATM Forum UNI 3.1/4.0 PVC Support up to 8 PVCs RFC 1483/2684 Multiple Protocol over AAL5 RFC 2364 PPP over AAL5 RFC 2516 PPP over Ethernet LLC and VC Multiplexing ATM QoS CBR, UBR, VBR
Firewall Security	Stateful Packet Inspection Prevent DoS and DDoS Attacks Policy-based Access Control Content Filtering Packet Filtering Real-time Attack Alert and Logs
Virtual Private Network	10 IPSec VPN Tunnels IKE and Manual Key Management AH and ESP Protocol DES, 3DES and AES Encryption SHA-1 and MD5 Authentication Tunnel and Transport Mode Encapsulation
Network Protocol	IEEE 802.1d Transparent Bridging IP Routing: TCP, UDP, ICMP, ARP RIP v1 and RIP v2 IP Multicast IGMP v1/v2
IP Management	SUA/Multi-NAT Internet Sharing VPN (IPSec, PPTP) Pass-through Multimedia Applications Support DHCP Server/Relay/Client DNS Proxy Dynamic DNS UPnP Support
Network Management	Web-based Configuration FTP/TFTP for Firmware and Configuration Upgrade/Backup Telnet Management SNMP Support Built-in Diagnostic Tools

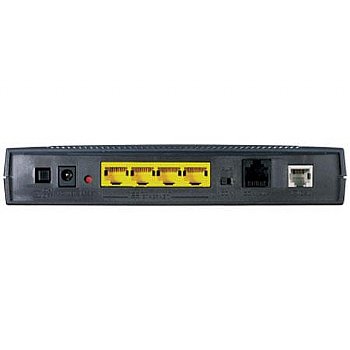

DSL interface	RJ-11 Connector for G.SHDSL Connection
LAN interface	4-port Switch, 10/100M Auto MDI/MDIX
Reset Button	Yes
Console/Aux	DB-9F RS-232 Cable for Local Management DB-9M RS-232 Cable for Dial Backup
Status LED Indicator	POWER, ETHERNET, DSL, INTERNET
Power	12V AC
Operating Temperature	0deg.C - 40deg.C
Operating Humidity	20% - 85%
Storage Temperature	-20deg.C - 60deg.C
Storage Humidity	20% - 90%
Dimensions (WxDxH)	178 x 125 x 31mm / 7.01 x 4.92 x 1.22in
Weight	345g / 0.76lbs
