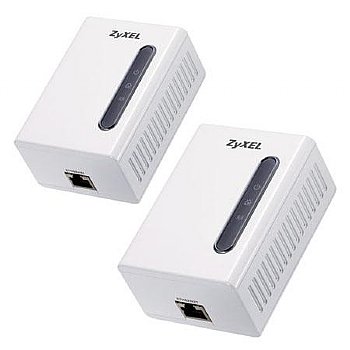

The ZyXEL HomePlug AV PLA-401 is an extended access solution that allows your house to be completely networked using your existing electrical power lines. With no need for additional wiring, simply plug the ZyXEL HomePlug AV PLA-401 to an existing electrical outlet, then plug the second PLA401 to the outlet you want to have network connection and it will transform your electrical power lines into a house-wide network infrastructure. It's the easiest way to extend the network connection from your broadband router. Powered by HomePlug AV Technology, the ZyXEL PLA-401 can achieve blistering speed of up to 200 Mbps. The HomePlug AV powered PLA-401 allows users to stream high-definition video from one side of the house to the other.
Specifications:
| Form Factor |
External |
| Connectivity Technology |
Wired |
| Data Transfer Rate |
200 Mbps |
| Line Coding Format |
8 QAM, 32 QAM, 64 QAM, 256 QAM, BPSK, QPSK, OFDM, ROBO, 1024 QAM |
| Data Link Protocol |
Ethernet, Fast Ethernet, HomePlug AV (HPAV) |
| Spread Spectrum Method |
OFDM |
| Status Indicators |
Link activity, power |
| Interfaces |
1 x network, Ethernet 10Base-T/100Base-TX, RJ-45, 1 x network, HomePlug AV |
| Cables |
1 x network cable |
| Encryption Algorithm |
128-bit AES |
| Compliant Standards |
Plug and Play, CE, CSA, UL, FCC Part 68 |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Software Included |
Drivers & Utilities |
| OS Required |
Microsoft Windows 2000 / XP, Microsoft Windows Server 2003 |
| Min Operating Temperature |
32 deg. F |
| Max Operating Temperature |
104 deg. F |
| Humidity Range Operating |
20, 80% |
| Dimensions (W x D x H) |
3" x 3.8" x 1.8" / 7.62 x 9.65 x 4.57 cm |
| Weight |
6.5 oz / 184.27 g |
|
|
