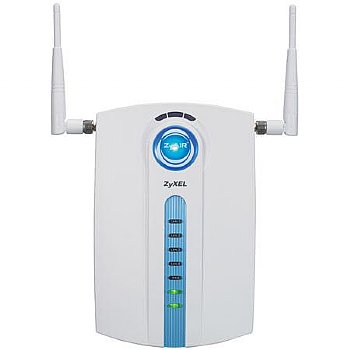

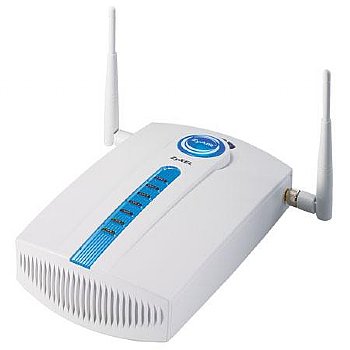

ZyXEL G-4100 v2 is an all in one hotspot gateway that provides secure Internet access by free or changed based policy as the business owner wants. It provides authentication and accounting functions for both wireless and wired clients and supports up to 100 concurrent users. G-4100 v2 works with SP-200E statement printer; businesses need only to click the button on the SP-200E and it automatically generates and prints the account, password and pre-configured time for Internet access hours. All functions required for hotspot service are all in the G-4100 v2.

G-4100 v2 has an embedded and very easy to configure authentication server. Hotspot business owners, such as coffee shops, book stores, hotels or resorts, do not need any other hardware or software for to provide hotspot service. G-4100 v2 also support RADIUS server for large scale hotspot service deployment for chain-stores and airport terminals to provide roaming capability from one store to another through centralized authentication and accounting.

To provide the best hotspot user experience, the G-4100 v2 features rich networking functions including IP PnP function, DHCP server, NAT, MAC address filtering, IP address filtering, etc. The IP PnP technology enables the ultimate user experience for "No configuration needed at all." It transparently takes care of the IP networking before the user knows it, dramatically improving user satisfaction and reduced technical support effort. The user no longer needs to change the IP address, subnet mask, default gateway, web proxy and SMTP server. V-LAN security for wired and wireless clients, NAT, layer 2 isolation and MAC IP address filtering technology work behind the scenes to ensure each user's privacy is protected, preventing personal sensitive data from being exposed.

With the G-4100 v2, businesses can customize the log-in page and redirect to provide limited Internet access to the owner's home page. Additionally, powerful management functions including SSL log-in page, secure remote function and LAN and WLAN device management are designed for a hotspot gateway. For easy deployment, both the G-4100 v2 and the SP-200E printer support PoE (Power over Ethernet). Now you can deploy your hotspot solution without having to be concerned about the location of the power outlet.





	Integrated Hotspot service
	Scalable user Authentication and Accounting
	Rich Networking Functions
	Customized Login Page, Advertisement URL link and Walled garden



IP Plug and Play (iPnP technology)	Easy-to-Use, Zero Configuration IP Plug and Play Internet Access
Rich Networking Functions	NAT Outgoing SMTP Server Redirection DNS Redirection Various WAN connections (Static IP/DHCP Client/PPPoE/PPTP) DHCP Server Transparent HTTP Proxy NTP (Network Time Protocol) support
User Authentication and Accounting	Supports up to 100 concurrent users Web-based Authentication Idle-timeout Control
Security and Firewall	Layer 2 Isolation Security SSL Login Page and Administration VPN (IPSec/PPTP/L2TP) Pass through Pass through IP and MAC Address Custom SSL Certificate Administration Access Control
Management	Web-based management tool TFTP/HTTP firmware upgrade Central scheduled firmware upgrade Backup/Restore Configuration file WLAN/LAN devices Management Devices Status Monitor Session List Syslog Messaging System Default printer ( SP-200E ) support
Marketing Cooperation	Passthrough IP/MAC/URL Custom Login Page Login Page Redirect Advertisement URL link Walled garden Portal page redirection
Network Specification	IEE802.3 10BaseT Ethernet IEE802.3u 100BaseTX Fast Ethernet IEE802.11g Wireless LAN
Compatibility	Communicate with Wi-Fi certificated wireless adapters

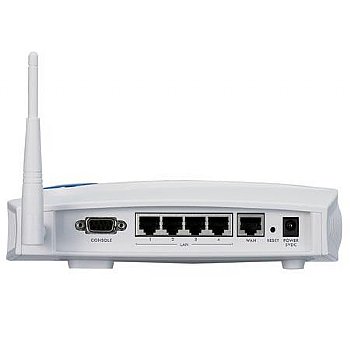

Connectors	4 LAN Ports and One WAN Port 10/100BaseTX with auto MDI/MDI-X RS-232 port (For debugging and testing purpose only)
Wireless Operation Range	Open Space: 100-300m Indoors: 35-100m
Wireless Data Rate	Up to 54 Mbps with auto fallback with 802.11b
Encryption	WEP 64/128, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA/WPA2 Mixed Mode
External Antenna Type	2dBi (Max) Dual detachable diversity antenna with reverse SMA connector
Power Requirement	External Power Adapter Input: 100-240 VAC, 50/60 Hz, 0.35 A Output: 5V, 2A
LED Indicators	One POWER LED One WAN Link/Activity LED Four LAN Link/Activity LEDs One Sys LED One Blue Wireless Link/Activity LED
Operating Temperature	32deg.F - 122deg.F / 0deg.C ~ 50deg.C
Storage Temperature	-22deg.F - 140deg.F / -30deg.C ~ 60deg.C
Humidity	Max. 90% non-condensing
Dimensions (W x D x H)	8.4" x 5.5" x 2" / 212.5 x 138.5 x 52.0 mm
Weight	1.1lb / 508g
