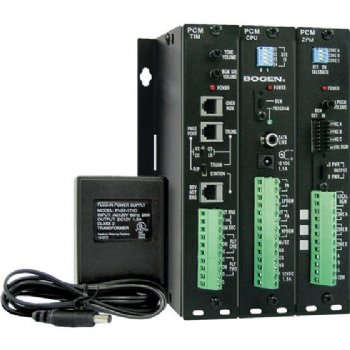

The PCMSYS3 is a pre-assembled and tested 3-zone PCM2000 system
with a PCMPS2 power supply. Use it right out of the box for 1 to 3 zone
applications or expand it with other PCM modules. Provides all the same
great features found in the PCM2000 zone paging system.
Paging Features:
• Provides 1 to 3 paging zones
• Expandable up to 99 zones*
• Up to 32 programmable paging
zone groups
• Emergency All-Zone Override
Paging input
• Two-way Communications*
• 250W power handling capacity
• Code Calling
• Background Music distribution
• Works with systems that are
central- or self-amplified
• Drives up to 40 self-amplified
speakers per zone module
• Night Ringer, 90V and contact
closure
• Real-time Clock & Master Clock
Synchronization*
• Time Triggered Signaling Tones*
Installation Features:
• Operates with 70V and self-
amplified (24V) paging systems
• Universal Telephone Interface
allows simple connection to
loop and ground start trunks,
paging ports, and to analog
90V station lines
• RJ11 jacks & terminal blocks
• Relay driver outputs
• Two C-form relay contacts
• Setup tone
• Program system features
via DTMF
• Wall-mountable
• Rack-mount adapters (optional)
• FCC Part 68 registered
• UL60950 listed
