VP-12124

Our Products: Paging/Speakers/Horns > Other
SKU: VP-12124
Brand: Valcom
Valcom VP-12124 The primary is protected by a 6.3 Amp fuse and the two amp outputs by auto-resetting fuses. The outputs are floating with respect to ground. Valcom VP-12124, UPC: 799111009094
UPC: 799111009094
List Price: $728.00
Price: $379.25
You Save: $348.75 (48%)
Add to Wishlist Add to Wishlist
VP-12124
VP-12124
VP-12124
VP-12124
VP-12124
VP-12124
(Click to see larger image and other views)
Previous Item Previous Item   Next Item Next Item
Product Details

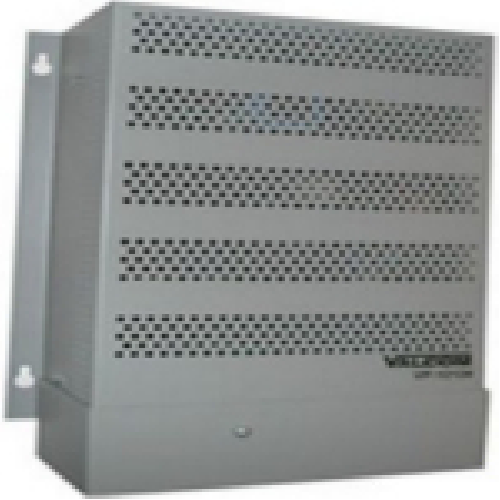

SWITCHING POWER SUPPLY-24vdc, 12A

The VP-12124 is a fully regulated 24VDC, 12 Amp switching power supply. The primary is protected by a 6.3 Amp fuse and the two amp outputs by auto-resetting fuses. The outputs are floating with respect to ground. The regulator will maintain 24 volts +/-2% over the rated range of input voltages and output loads. A greater than 12 Amp load on power will cause the power supply to current limit. Short circuit protection is provided. Over voltage is provided to limit the output voltage to approximately 28 Volts should a failure occur within the power supply. Outputs may be paralleled but not series connected.
Features:
  • Hold Up Time: 350mS Power Line Ride Through
  • 6 LPS outputs (24VDC @ 2A each)
  • Meets Canadian requirements classified Level 3
  • Short circuit protection
  • LED operational indicator
  • EMI filtering
  • Auto recovery overload protection
  • Power factor correction
