Viking VK-E-40BN

SKU: VikingVK-E-40BN

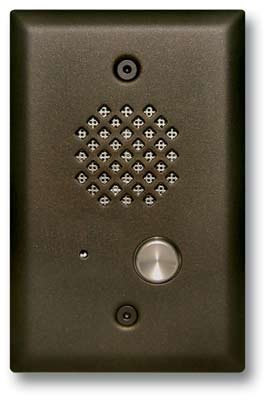

Viking Electronics Oil Rubbed Bronze Entry Phone
List Price: $420.00
Price: $193.75
You Save: $226.25 (54%)
Viking VK-E-40BN
Viking VK-E-40BN
Product Details
The E-40 Series entry phones are compact, weather and vandal resistant, telephone line powered speaker phones designed to provide two-way handsfree communication. The E-40's compact size allows it to be mounted in a standard single gang electrical box. The E-40 is available in five different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-40 faceplates (PNL40) can be purchased separately and are available in all five standard finishes.

The E-40’s blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring. Note: LED not available on all models. Contact Viking for more information.

The E-40 entry phones can share a single phone line with house or small business telephones when used with a Viking model C-200, C-250 or C-2000B Entry Phone controller. The E-40 entry phones can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking model K-1900-5 or K-1900-30 auto dialer.

The E-40 features microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed.

For outdoor installations where the unit is exposed to precipitation or condensation, the E-40 Series is available with Enhanced Weather Protection (EWP). For more information on EWP, see DOD# 859.

Applications
  • Door or gate communication, business delivery entrances
  • Use with a Viking C-200 or C-250 to control an E-40 on a single line
  • Use with a Viking C-2000B to control 1 to 4 E-40’s and door/gate control on a single phone line
  • Provide unique front and back door chimes and paging when used with a Viking SLP-1, SLP-4 and C-2000B
  • Residential, commercial and industrial door security
  • Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX/KSU station ports
  • Use on any analog PABX station port with programmable ringdown capability
Features
  • Compact size: Front panel is the size of a typical single gang midsize wall plate
  • Mounting: Flush mounts in a single gang electrical box (2.25” deep x 2.00” wide x 2.84” tall minimum) or surface mounts in a Viking model VE-3x5 (not included, see DOD# 424)
  • Available in 5 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Polished Brass, Satin Black and Satin White
  • PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
  • Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel push button, carbon fiber reinforced plastic speaker screen, scratch resistant powder coating, hex drive mounting screws
  • Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-40-SS 304 Stainless Steel faceplate)
  • E-40-EWP is designed to meet IP66 Ingress Protection Rating (see DOD# 859 for more information)
  • Telephone line powered
  • Microphone and speaker volume controls
  • Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
  • Selectable auto answer feature for monitoring
  • Programmable VOX (mic/speaker) switching speed
  • Blue LED helps locate push button, indicate ringing and off hook
Specifications
  • Power: Telephone line powered. Minimum 18V DC talk battery voltage with a minimum loop current of 20mA. Loop current may be boosted on low current lines with a Viking model TBB-1B Talk Battery Booster (see DOD# 632).
  • Dimensions: Faceplate: 123.8mm x 79.4mm x 4.6mm (4.875” x 3.125” x 0.18”), Phone: 72mm x 46mm x 42mm (2.84” x 1.8” x 1.65”)
  • Shipping Weight: 0.45 kg (1.0 lbs)
  • Operating Temperature: -34° C to 65° C (-30° F to 150° F)
  • Humidity: Standard model: 5% to 95% non-condensing humidity, EWP model: up to 100% humidity
  • Speaker Volume: Approximately 62db maximum @ 1m
  • Ring Voltage: 25V AC RMS minimum (for auto answer)
  • CPC Disconnect Time: 300ms minimum
  • REN: 0.8A
  • Connections: (2) gel-filled butt connectors
