| Outdoor Enclosure

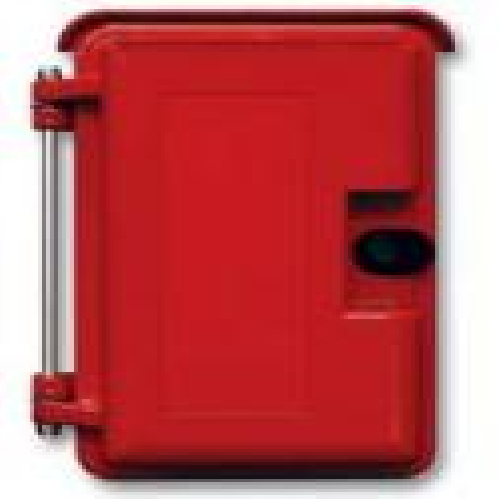

The VE-9x12 and VE-9x20 provide the ultimate in weather protection for your Viking product or other telecom devices.
These enclosures are constructed of cast aluminum and are made for years of outdoor service. The heavy-duty aluminum doors are labeled "Telephone” and have a gasket seal to keep out even the harshest weather. The VE-9x12 allows you to choose from two panels that allow mounting many different Viking products.
Both the VE-9x12 and VE-9x20 are available in three high visibility colors: emergency red with silver lettering, safety yellow with red lettering, or black with silver lettering.
|
Applications
- Parking lots
- Maintenance areas
- Building exteriors
- Swimming pools
- Play grounds
- Roadside help areas
|
Features
- Heavy-duty 319 cast aluminum construction
- Powder coated for durability and UV stability
- Drip guard and gasket sealed door
- 0.020” thick stamped aluminum "Telephone” label with scratch resistant UV stable clear coat
- ½” NPT conduit openings on top and bottom
- Available in Emergency Red, Safety Yellow or matte Black
- Mounting holes for a standard RJ11 wall plate (VE-9x12 with adapter panel 1)
- VE-9x12 available with two adapter panels
- Hardware included with all adapter panels
- Optional VE-SPG door return hinge spring available
- Optional VE-PBL push button lock and key set available
- VE-9x12-0 Enclosures without adapter plates for mounting other (non-Viking) telecom products, available in all three colors, label included
|
Specifications
- Dimensions: See Technical Practice
- Shipping Weight: VE-9x12 - 5.9 kg (13 lbs)
- Colors: Red with silver lettering, yellow with red lettering or matte black with silver lettering
- Conduit Opening: ½” NPT top and bottom with top plug
|
