AC Rack Mount CCTV Power Supply, 16 (3.5 amp) Fuse Protected Outputs

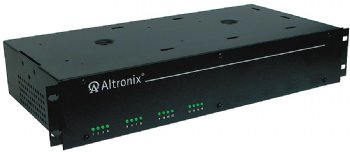

The Altronix R2416300UL Rack Mount CCTV Power Supply provides 24VAC or 28VAC distributed via sixteen (16) individual fuse protected outputs for powering CCTV Cameras and other video accessories.
Specifications:
UL Listed - US and Canada for Commercial Closed Circuit Television Equipment (UL2044).
24VAC @ 12.5 amp (300VA) or 28VAC @ 10 amp (280VA).
Sixteen (16) individual fuse protected outputs.
Input 115VAC 50/60 Hz, 2.7 amp.
Surge suppression.
Outputs are rated at 3.5 amp max.
Sixteen (16) individual power LED indicators.
2U rack mount chassis for use in standard EIA 19" rack.
Removable terminal blocks with locking screw flanges.
Power switch with built-in circuit breaker.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
Spare fuse included.
Dimensions: 3.25"H x 19.125"W x 8.5"D
