V-ACS25

SKU: V-ACS25
Brand: Valcom

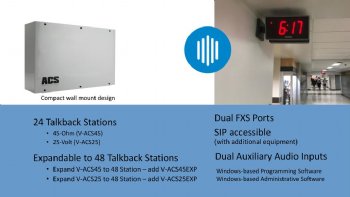

SHIPS: Valcom V-ACS25 24 ZONE INTERCOM 25V W/CLK Compact wall mount design 24 Talkback Stations 45-Ohm (V-ACS45) 25-Volt (V-ACS25) Expandable to 48 Talkback Station Expand V-ACS45 to 48 Station – add V-ACS45EXP Expand V-ACS25 to 48 Station – add V-ACS25EXP Dual FXS Ports SIP accessible (with additional equipment) Dual Auxiliary Audio Inputs Windows based programming software Windows based administrative software Up to 1 Hour of Custom WAV file storage 3 Programable Switch Inputs 4 Programmable Relays 24 Flexible / Non-Blocking Audio Groups 2 Flexible / Non-Blocking Music Groups 8 Bell Schedules NTP time updates All speaker and I/O terminations may be made within the V-ACS enclosure Integrated 59th minute and data-based clock correction
List Price: $7,026.00
Price: $3,650.00
You Save: $3,376.00 (48%)
V-ACS25
V-ACS25
V-ACS25
V-ACS25
V-ACS25
V-ACS25
(Click to see larger image and other views)
Product Details
24 ZONE ONE-WAY/TALKBACK INTERCOM SYSTEM

THE V-2924A PROVIDES 24 STATIONS OF HANDSFREE INTERCOM WITH ONE-WAY GROUP CALL AND ALL CALL. UP TO THREE EXPANSION UNITS MAY BE CONNECTED TO PROVIDE 48, 72, OR 96 ZONES OF PAGING WITH HANDSFREE REPLY, UP TO 16 ONE-WAY PAGE GROUPS, AND ALL CALL. THE SYSTEM ALSO PROVIDES THE ABILITY FOR A REMOTE SPEAKER LOCATION EQUIPPED WITH A CALL BUTTON TO CALL THE ATTENDANT LOCATION.
FEATURES:
  • 24 ONE WAY PAGING AND/OR TWO-WAY INTERCOM CIRCUITS
  • 4 SEPARATE PAGING/TONE GROUPS PER UNIT
  • BACKGROUND MUSIC AND TONES ARE GROUP SELECTABLE
  • STANDARD TWISTED PAIR CAT 2-6 SYSTEM CONNECTIONS AND BLOCKS
  • CALLER ID LOOP START TRUNK C.O. LINE POSITION PBX INTERFACE
  • 4 AUXILIARY RELAYS FOR CONTROLLING DOOR LOCKING/UNLOCKING ACCESS
  • SMDR PRINTER OUTPUT PROVIDES RECORD OF SYSTEM ACTIVITY
  • BUILT IN CHARGER FOR OPTIONAL BATTERY BACKUP OPERATION (VPB-260)
  • MULTIPLE V-2924A UNITS MAY BE INTERCONNECTED FOR GLOBAL ALL CALL
  • UL AND FCC LISTED, REGISTERED OR APPROVED
