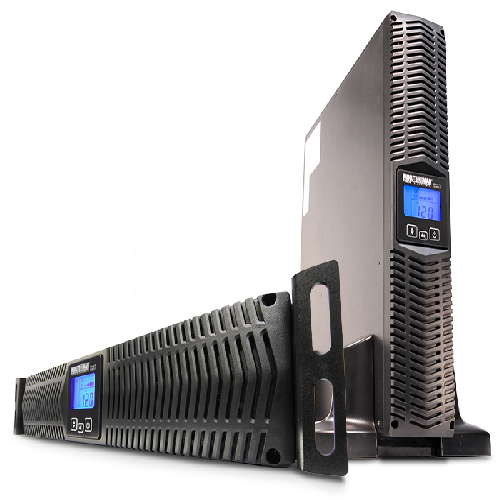

1500 VA 208V Line Interactive Extended Runtime Rack/Wall/Tower UPS with 6 Outlets
1500VA/1200W 208 VAC line interactive, extended runtime rack/wall/tower UPS designed for critical, power-sensitive electronic encironments
0.8 Power factor increases the capacity of the unit without migrating to larger models
Load shedding extends time of critical applications by removing power to non-essential devices
Independent battery bypass allows UPS to provide voltage regulation with surge and spike protection on AC power even when batteries are weak or dead
Floor-standing tower and 19-inch rack mount hardware included
Optional installation kits for 23-inch racks/cabinets and wall mount are available
Small form factor with 2U size
Simultaneous DB9, USB, and SNMP communications (SNMP card sold separately)
SentryHD UPS monitoring and control software included
Easy to read LCD display
Dedicated remote Emergency Power Off (EPO) port
RoHS2 compliant
Connected equipment covered with Minuteman $100,000 protection plan
Applications: workstation, network/server, phone and security systems
Voltage Range(VAC): 150-271
Frequency: 50/60Hz +/- 6Hz autosensing
Phase: Single
Waveform: true sine wave
Input Plug Type: 6-15P
Capacity (VA/W): 1500/1200
Transient Response (ms): +/- 10% at 100% load change in 30ms
Runtime (minutes): 4 full load, 11 half load
Fully Protected Outlets: 6 (6-15R)
RJ11 Protection: Yes
RJ45 Protection: Yes
Serial DB9 Ports: 1
Dry Contact Ports: 1
USB Ports: 1
Surge Energy Rating (Joules): 1000
Number of Internal Batteries: 1
Battery Part: BM0030
LCD Display Indicators: input/output voltage and frequency, UPS and battery mode/status, load capacity, estimated runtime
Operating Temperature: 0-40 degrees Celsius
