The K-1500 Emergency Phones provide reliable handset or handsfree emergency communication.

The K-1500-E and K-1500-EHF can be connected directly to a C.O. line or analog PABX/KSU station when used in conjunction with a hotline dialer or programmed ring down circuit. The phones can also be used with Viking’s DLE-200B ring down circuit.

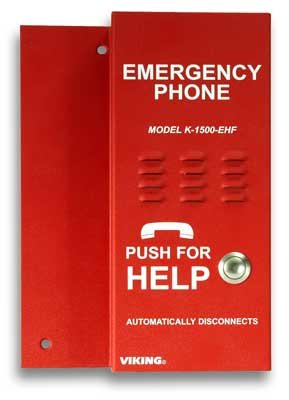

When the button is pressed, the K-1500-EHF will come off hook until the pre-selected time- out has elapsed (adjustable from 6 seconds to 5 minutes) or a CPC is detected. During this time, the user may converse handsfree. Alternatively, standard handset communication is used with the K- 1500-E.

The K-1500-E and K-1500-EHF components conform to industry-set standards and are mounted on a formed aluminum panel, finished in red powder paint for easy visibility.



Applications Commercial, industrial or residential elevators Use in conjunction with a Viking Hot-Line Dialer on C.O. lines or analog PABX/KSU stations Use on any programmed ringdown circuit of an analog PABX/KSU station

Features Handsfree or handset models available Phone line powered No dial pads Designed to mount in a standard emergency phone enclosure (10” x 7” x 3”) Built for easy installation and simple operation Hearing aid compatible handset with volume control Selectable auto-answer feature allows remote monitoring Adjustable time out to limit prank calls and false alarms (approximately 6 seconds - 5 minutes) Two-way handsfree communication Vandal resistant metal push button Call timer on/off switch VOX (mic/speaker) switching speed selection Adjustable mic and speaker volume

Specifications Power: Telephone line powered (18V DC/20mA minimum) Dimensions: 174mm x 251mm x 63.5mm (6.8” x 9.875” x 2.1”) Shipping Weight: K-1500-E: 1.13 kg (2.5 lbs), K-1500-EHF: .91 kg (2 lbs) Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% noncondensing humidity K-1500-EHF Speaker Volume: Approximately 70db maximum @ 1m K-1500-EHF Ring Voltage: 30V AC RMS minimum K-1500-EHF CPC Disconnect Time: 300ms minimum K-1500-EHF REN: 0.7A Connections: K-1500-E: (1) RJ11 jack, K-1500-EHF: (1) 2-position terminal block
