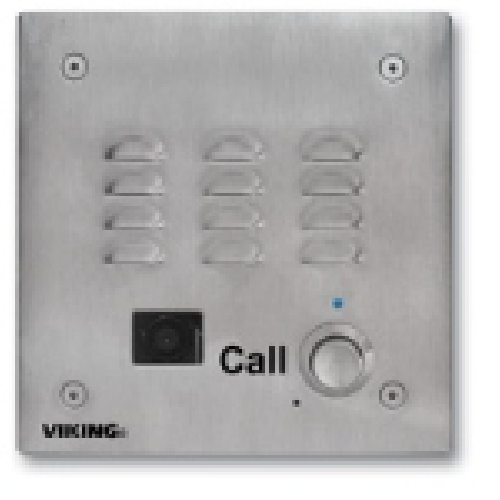

The E-35 is a weather and vandal resistant handsfree video phone designed to provide quick and reliable handsfree communication and CCTV video of who is at your door or gate. The E- 35 can be connected directly to a C.O. line, analog PABX/KSU station, or a Viking Door/Gate Controller: C-200 or C-2000A. The E-35 features non-volatile memory, a built in dialer, a built-in high resolution color video camera, and intelligent call progress detection for automatic hang-up when the call is completed. The E-35 can be programmed to dial up to 5 different numbers on ring no answer or busy and can be configured to dial these numbers until answered. For extreme outdoor environments or corrosive atmospheres, the E-35 is available with Enhanced Weather Protection (EWP). EWP products feature rubber gaskets and boots, closed cell foam gasketing, hand soldered silicon sealed connections, anti-corrosive gel filled butt connectors, as well as urethane encapsulated circuit boards with internally sealed, field-adjustable trim POTS and DIP switches. Applications Gate and Door Entry Phones for: Business lobbies Residences Auto or pedestrian gates Non-ADA Hot-Line Phones for: Elevators Stadiums Parking lots/ramps Convention centers ATM machines Features Built-in 5 number auto-dialer Built-in high resolution color video camera with wide viewing angle, tilt/swivel adjustments and wide operating temperature of -30°F to 150°F Audio and video transmission on one CAT5E cable (page 5) Vandal Resistant Features: 14 gauge louvered stainless steel faceplate with stainless steel speaker/mic screen, heavy duty metal “Call” button, impact and scratch resistant camera lens and hex drive mounting screws Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, sealed camera lens, potted camera circuit board, stainless steel phone and camera mounting hardware Optional Enhanced Weather Protection (EWP) conforms to NEMA requirements Red “off-hook” LED Volume adjustments for microphone and speaker Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder signal, maximum call time out and selectable silence time out Selectable auto-answer feature for monitoring Selectable push button disconnect Optional VE-5x5 surface mount box available Selectable maximum call time Selectable VOX switching speed Specifications Entry Phone / Camera Specifications Operating Temperature: -34° C to 65° C (-30° F to 150° F) Humidity: Standard model: 5% to 95% non-condensing, EWP model: Up to 100% Connections: Standard model: (3) gel-filled butt connectors (3M Scotchlok UR2), EWP model: (5) gel-filled butt connectors (3M Scotchlok UR2) Entry Phone Specifications Power: Telephone line powered. Minimum 24V DC talk battery voltage, with a minimum loop current of 20mA loop.
