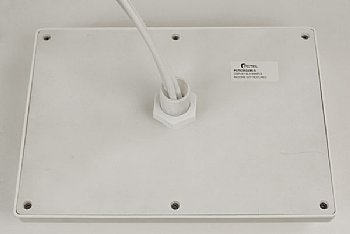

This very aesthetic indoor antenna provides for simple IEEE 802.11n MIMO upgrades for access points with 3 connectors. The antenna pattern is designed for ceiling mounted installations. The three plenum rated cables exit from a single stud mount in the center of the antenna, allowing for easy installation into the door of Oberon's Model 1052-00, 1072-00, and other ceiling mounted enclosures. The antenna's cover is a textured UL94 V-0 plastic which is color matched to the enclosure.
|
Antenna Pattern: |
Omnidirectional, vertical polarization |
 Frequency Range: |
2400-2500 MHz |
4900-5900 MHz |
Gain: |
2.5 dBi |
3 dBi |
VSWR: |
< 2:1 |
< 2:1 |
Connector: |
(3)RPTNC or (3)RPSMA (Please specify) |
Cable: |
(3) 5' Low Loss Plenum Rated |
Size: |
9.1" L, 6.6" W, 1.6" D |
