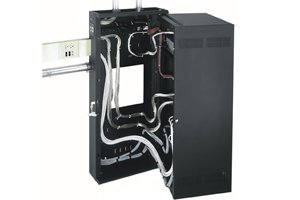

Redesigned Sectional Wall Mount Rack with Enhanced Cable Management for Larger Systems
Features:
- UL Listed in the US and Canada
- NEW! Tool-Free Quick-Mount system allows for easy, one-person mounting of the center section to the backpan on the jobsite
- Available in 15", 20", and NEW! 24" useable depths
- Welded construction provides up to a 300 lb. weight capacity, depending on model
- Fully adjustable 1/8", 10-32 threaded rackrail
- Abundant built-in cable lacing points in interior
- 1/2", 3/4", 1", 1 1/2", 2" and 3" electrical knockouts and 5/8" UHF/VHF Antenna knockouts on top & bottom, easily removable for cable pass-through
- 12 1/2" x 12 1/2" laser knockout opening in the backpan for electrical pull-box
- Abundant Velcro and internal cable tie points
- Finished in a durable black or granite gray textured powder coat
- Adjustable front rackrail, rear rackrail optional
- Center section hinges for left or right opening accessories
- 2" knockouts, 4" knockouts for Wiremold 4000 Series raceways, and knockouts for UCP series universal connector panels on side
- NEW! Front Mounted Zero Clearance Latch saves valuable wall space by allowing wall Racks to be placed side-by-side, in a corner, or wherever side clearance is an issue.
- Backpan includes raised mounting embosses to mount power and other accessories
Specifications:
- Racking Height: 21" (12 Space)
- Depth: 26" (24" usable)
- Weight Capacity: 200 lbs.
- Overall Height: 28 1/16"
