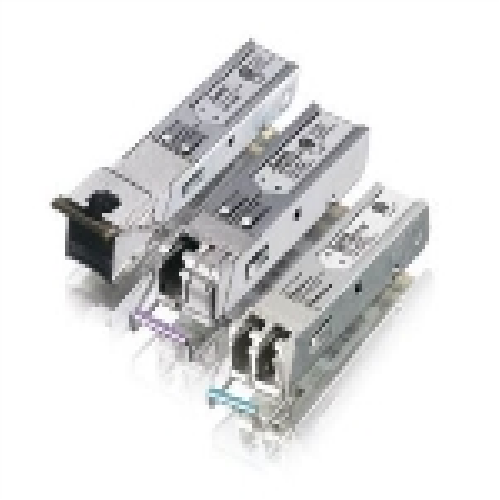

ZyXEL SFP-100TX 100Base TX SFP Transceiver follow industry standard to secure the compatibility with other brands' switches having no proprietary technology barrier. Rich portfolio for Fast and Gigabit Ethernet, just plug in the proper one, users can extend the physical network boundary as far as they wish. Independent ZyXEL transceiver design provides the highest flexibility for network maintenance. Apart with switch, transceivers can be added when they are really in need. Moreover, infrastructure upgrade or transceivers repair can be done easily by just changing transceiver, not whole device.
Features:
|
|
Hot pluggable |
|
|
SFP Multi-Source Agreement compliant |
|
|
Eye Mask complied to what specified in IEEE 802.3z |
|
|
Serial ID functionality support |
|
|
AC-coupled differential inputs and outputs |
|
|
Single +3.3V Power Supply |
|
|
Full duplex receptacle |
|
|
Support wire-speed packet forwarding capacity (1,488,000 packets per second at least) |
|
|
Low power dissipation |
Specifications:
| Connector |
RJ45 |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Fast Ethernet |
| Data Transfer Rate |
100 Mbps |
| Interfaces |
1 x network - Ethernet 100Base-TX |
| Compatible Slots |
1 x SFP (mini-GBIC) |
| Supply Voltage |
3.15-3.45 V |
| Max Current |
300mA |
| Operating Temperature |
32deg.F - 158deg.F / 0deg.C - 70deg.C |
| Storage Temperature |
-40deg.F - 185deg.F / -40deg.C - 85deg.C |
| Relative Humidity |
5% - 95% |
| Safety Certification |
CSA
TUV |
| Dimensions (W x D x H) |
2 x 0.5 x 0.48" / 56 x 13.4 x 12.46 mm |
| Weight |
16.79 g/0.59 oz |
|
|
