Many certified copper LAN cable installations also have fiber in campus, riser, backbone and desktop applications. Now you can also test these critical fiber optic cable runs easier and faster with the FiberKit+ added to your Model LT 8155T or LT 8600T cable tester. The FiberKit+ addresses many of the requirements that have emerged since WWG pioneered the concept of an integrated fiber optic test kit. Installation requirements have created the need to easily test multiple wavelengths on Multimode and Single-mode cable.

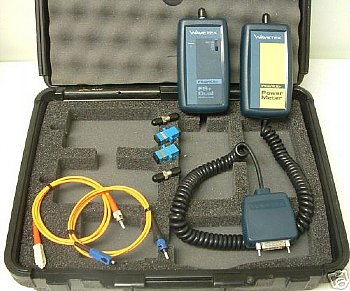

Fiber optic cable test adapter kit: Includes power meter adapter, ALLnm Multimode LED light source module, ST adapters, user reference guide, and carrying case, with Dual Wavelength 850nm/1300nm Multimode LED light source module, plus 1310nm and 1550nm Single-Mode laser light source modules.
Features:
- Test Multimode and Single-mode fiber optic cable systems for power loss.
- Automatically test multiple wavelengths without changing connectors or switching settings.
- LED and laser light sources generate 850nm and 1300nm wavelengths on Multimode cable; 1310nm and 1550nm on Singlemode cable.
- Label and organize test results by direction, drop, project and job. Upload stored fiber tests and create reports using LT Record Manager PC software.
- Supports multiple fiber optic connector configurations.
