300D0062EG

Our Products: Tools & Testers > Misc.
SKU: 300D0062EG
Brand: Erico

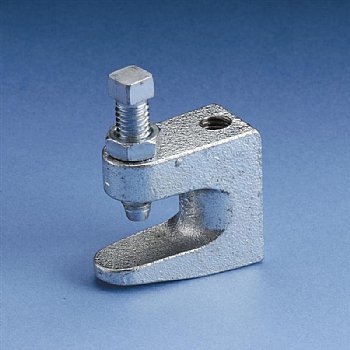

Erico #300 Reversible beam clamp 5/8" EG (50-box)
List Price: $276.00
Price: $199.47
You Save: $76.53 (28%)
Add to Wishlist Add to Wishlist
300D0062EG
300D0062EG
300D0062EG
300D0062EG
300D0062EG
300D0062EG
300D0062EG
300D0062EG
(Click to see larger image and other views)
Previous Item Previous Item   Next Item Next Item
Product Details
Features:

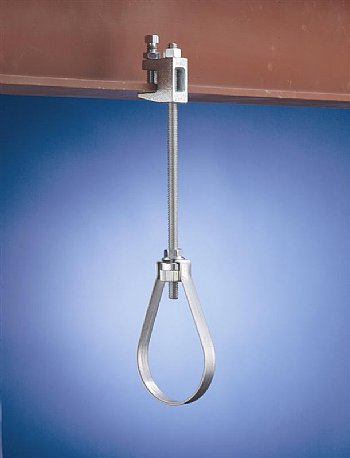

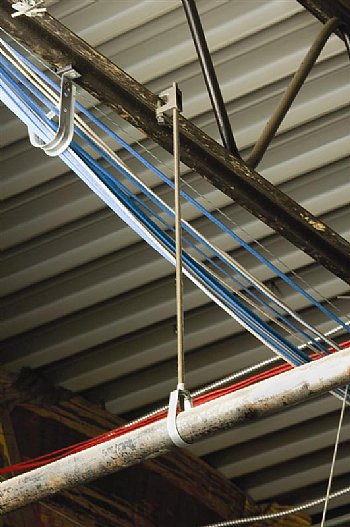

  • Structural Attachment to top or bottom of metal beams, purlins, channel, or angle iron.
  • Size Range: 3/8", 1/2", 5/8", 3/4", 7/8" rod sizes
  • Setscrew with cup point made of hardened steel
  • For compatible retainer straps see model 300C and 35RS
  • Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI/MSS-SP58 (Type 19 & 23), install in accordance with ANSI/MSS-SP-69
  • Surface Finish: Plain or Electro-zinc plated

Notes:

  • Setscrew must be tightened and torqued onto the sloped side of the beam
  • Recognizing that torque wrenches are generally not used or available on many job sites, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added
