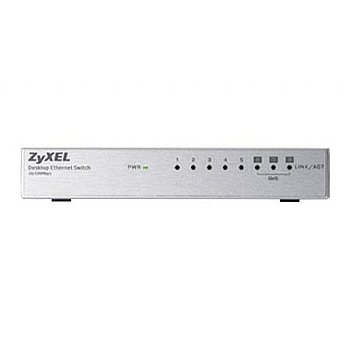

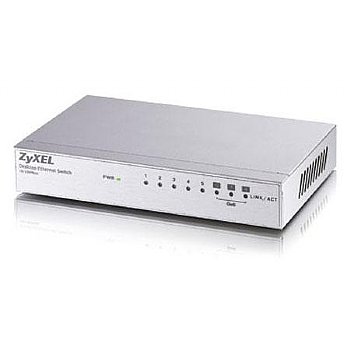

The ZyXEL ES108A Desktop Ethernet Switch, with 8-ports, is designed to boost your home network with better performance and efficiency. With the N-way auto-negotiation function, the ES-108A connects the network counterparts with highest possible network speed and activates duplex mode automatically. The store-and-forward service brings low latency and error-free packet delivering. The plug-and-play and multiple network protocol compatibility of the ES-108A make installation and management easier and faster than ever.
Features:
 |
With the new ZyXEL-exclusive stylish and low-profiles design, the ES-108A fits into your home ambiance for a trouble-free networking environment embodying ZyXEL's emphasis on design |
|
By applying advanced switching technology, ZyXEL specifically designed this series of Desktop Ethernet Switches with "VIP ports" reserved for media-rich applications |
|
The ES-108A reserves three ports for intensive network demands like Internet surfing, on-line gaming and media-rich applications |
|
VIP Ports provide configuration free Quality of Service for better VoIP and gaming performance |
|
5 autosensing 10/100 full duplex ports for compatibility |
|
Full wire-speed store-and-forward technology support for best performance |
|
Auto-MDI/MDI-X functions support lets you use any CAT-5 cable |
Specifications:
| Standard Compliance |
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE802.3 Auto-negotiation
IEEE802.3x Flow Control |
| Data transfer rates |
Ethernet 10M/20Mbps (half/full duplex)
Fast Ethernet 100M/200M (half/full duplex) |

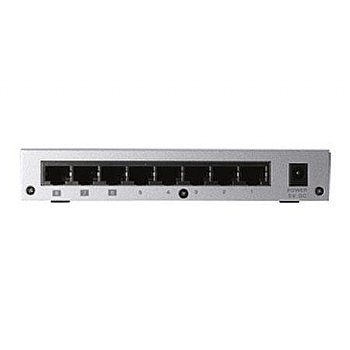

| Interface |
8 10/100BASE-T Ethernet ports |
| Network Cables |
10BASE-T: UTP Cat.3, 4, 5 (100 m) EIA/TIA-586 100-ohm STP (100 m)
100BASE-TX: UTP Cat.5 (100 m max.) EIA/TIA-568 100-ohm STP (100 m) |
| Media Interface Exchange |
MDI-II/MDI-X auto-adjustment for each port |
| System Requirement |
Network card for each PC
Network Cables |
| Status LED |
Per Port: Link/Activity
Per unit: PWR |
| Performance Back plane |
Non-Blocking full wire-speed forwarding rate: 1.6Gbps
Packet Forwarding Rate:
14880PPS for 10BASE-T
148800PPS for 100BASE-TX |
| Data Buffer |
768Kb |
| MAC Address Table |
1K entries |
| Power supply |
5VDC 0.6A |
| Power consumption |
2.75W (max) |
| Operating temperature |
32deg. F - 122deg. F / 0deg. C - 50deg. C |
| Operating humidity |
10% to 90%, non-condensing |
| Dimensions (W x D x H) |
6" x 3.4" x 1" / 154.5 x 85 x 26 mm |
| Weight |
12oz / 340g |
|
|
