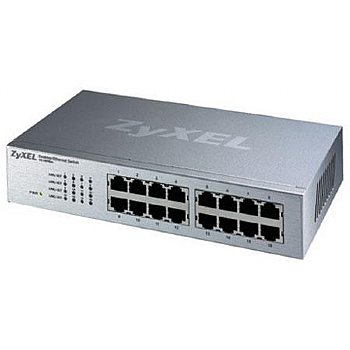

The ZyXEL ES116P Desktop Ethernet Switch, with 16-port and internal power adapter, is designed to boost your network with better performance and efficiency. With the N-way auto-negotiation function, the ES-116P connects the network counterparts with the highest possible network speed and activates duplex mode.
Features:
 |
Unlike shared 10/100 Mbps networks, the ZyXEL Desktop Ethernet Switch series eliminates congestion by providing dedicated bandwidth. Its duplex mode doubles the effective bandwidth by enabling two-way communications. Store-and-forward service brings low latency and error-free packet delivering |
|
The plug-and-play and multiple network protocol compatibility of the ES-116P make the installation and management easier and faster than ever |
|
The compact size fits into any working environment due to the included rack mount brackets. No matter how intensive your network demands, ZyXEL's Desktop Ethernet Switch series, with internal power adapters |
|
16 autosensing 10/100 full duplex ports for compatibility |
|
Internal Power Adapter takes up less space on your power outlets |
|
Full wire-speed store-and-forward technology support for best performance |
|
Auto-MDI/MDI-X functions support lets you use any CAT-5 cable |
Specifications:
| Standards |
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE802.3 Auto-negotiation
IEEE802.3x Flow Control |
| Data transfer rates |
Ethernet 10M/20Mbps(half/full duplex)
Fast Ethernet 100M/200M(half/full duplex) |
| Interface |
16 10/100BASE-T Ethernet ports |
| Network Cables |
10BASE-T: UTP Cat.3, 4, 5 (100 m) EIA/TIA-586 100-ohm STP (100 m)
100BASE-TX: UTP Cat.5 (100 m) EIA/TIA-568 100-ohm STP (100 m) |
| Media Interface Exchange |
MDI-II/MDI-X auto-adjustment for each port |
| System Requirement |
Network card for each PC
Network Cables |
| Status LED |
Per Port Link/Activity
Per unit: PWR |
| Performance Back Plane |
Non-Blocking full wire-speed forwarding rate: 3.2Gbps
Packet Forwarding Rate:
14,880PPS for 10BASE-T
148,800PPS for 100BASE-TX |
| Data Buffer |
1.25Mb |
| MAC Address Table |
8K entries |
| Operating temperature |
32deg. F - 122deg. F / 0deg. C - 50deg. C |
| Operating humidity |
10% to 90% (Non-condensing) |
| Power supply |
3.3VDC, 4A (100-240V/50-60Hz) |
| Power consumption |
6.44W (max) |
| Dimensions (W x D x H) |
8.5" x 5.2" x 1.6" / 215 x 133 x 42 mm |
| Weight |
1.9lbs / 867g |
|
|
