ZyXEL's Prestige 660M-D1 offers an ADSL/ADSL2/ADSL2+ network solution for Home and SOHO users. The Prestige 660M-D1 provides faster high-speed Internet access than ever before. Users can transfer high quality multimedia and enjoy real time applications such as online gaming, multi-point video conferencing, fast downloads and other bandwidth consuming services.
Installation is quick and simple so users can quickly connect to the Internet and service providers can substantially reduce their customer support costs. And ZyXEL reliability means once the P-660M-D1 is working it keeps working! High performance ADSL2+ speed paired with simple ease-of-use makes the P-660M-D1 the ideal Internet access solution for today's Home and SOHO user.
Features:
 | Prestige 660M ADSL 2+ Modem over POTS |
Specifications:
| ADSL Compliance | RADSL (ANSI T1.413 Issue 2)
G.dmt ADSL over POTS (G.992.1 Annex A)
Auto-negotiating rate adaptation
ADSL2 (G.992.3)
ADSL2 Reach Extended (Annex L)
ADSL2 Enhanced Upstream (Annex M)
ADSL2 DELT
ADSL2+ (G.992.5)
ADSL2+ Reach Extended (Annex L)
ADSL2+ Enhanced Upstream (Annex M)
ADSL2+ DELT
G.hs (G.994.1) |
| ATM Support | 8 PVCs Support
RFC 1483 / 2684 Multiple Protocol over AAL5
VC and LLC Multiplexing
Traffic Shaping UBR, CBR, VBR-nrt
ATM Forum UNI 3.1/4.0 PVC
I.610 OAM F4/F5 loop-back, AIS and RDI OAM cells |
| Network Management | Command-line Interpreter (CLI)
Telnet Remote Management
FTP / TFTP firmware upgrade and configuration backup / restore
Built-in Diagnostic Tool |

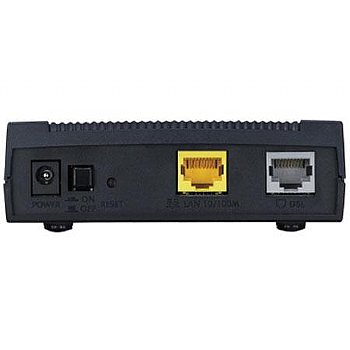

| Hardware | ADSL: One RJ-11 phone port
LAN: One RJ-45 10/100M and MDI/MDIX auto-sensing Ethernet port
Reset Button
Status LED Indicators
Power 9V AC |
| Temperature | 32deg. F - 104deg. F |
| Humidity | 20% - 85% |
| Dimensions (W x D x H) | 4.14" x 4.2" x 1.38" / 10.51 x 10.66 x 3.50 cm |
| Weight | 6 oz / 170.09 g |
| |
