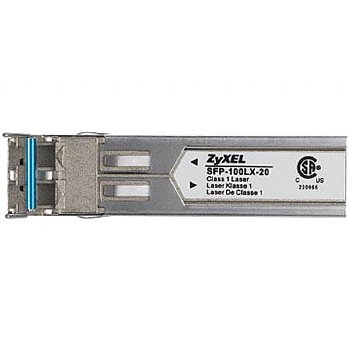

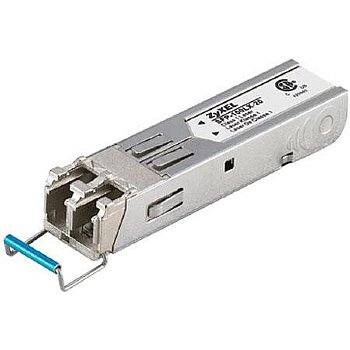

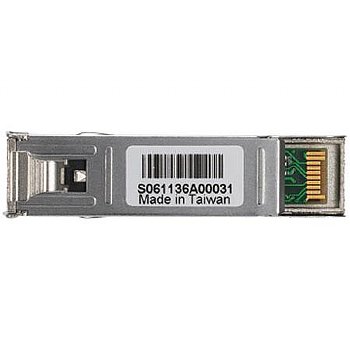

ZyXEL SFP100LX20 Single-Mode 100Base-LX SFP Transceiver follows industry standards to assure compatibility with switches from other manufacturers without barriers set by proprietary technologies. With ZyXEL's comprehensive Fast and Gigabit transceiver product range, users can just plug in the proper model to extend the physical network coverage. Independent transceiver design provides the highest network maintenance flexibility.

Transceivers can be added when required and infrastructure upgrade or transceivers repair can be done easily by just replacing the transceiver instead of the whole device. Two strands of fiber have been required for traditionally fiber optic networking to accomplish communications. In this case, one strand is reserved for transmitting, the other for receiving.

However, bi-directional, dual wavelength transceivers can accomplish communications over just one strand of fiber by using two separate optical wavelengths, one to receive and the other to transmit the signal. Transmission capacity can be expanded immediately without additional cost of running new fiber and the value of existing fiber plant can be maximized.



Features:



	Industry Standard Compliance
	SFP MSA (Multi-Source Agreement) Compliance
	Hot-Pluggable with Maximum Flexibility
	Compact Size, High Port Density
	Single +3.3V Power Supply
	Low Power Dissipation





Maximum Launch Power	-8 dBm
Minimum Launch Power	-15 dBm
Optical Receiver Sensibility	-30 dBm
Maximum Input Power	-5 dBm
Optical Budget	15 dB
Wavelength	1310nm
Connector	LC
Transmission Distance vs. Fiber Cable	62.5 um MMF: 550 m 50 um MMF: 550 m 9um SMF: 20 km
Supply Voltage	3.1-3.5 V
Max Current	250mA
Operating Temperature	32deg.F - 158deg.F / 0deg.C - 70deg.C
Storage Temperature	-40deg.F - 185deg.F / -40deg.C - 85deg.C
Relative Humidity	5% - 95%
Safety Certification	Class 1 Laser 21 CFR 1040.10 and 1040.11 compliant CSA TUV
Dimensions (W x D x H)	2 x 0.5 x 0.48" / 56 x 13.4 x 12.46 mm
