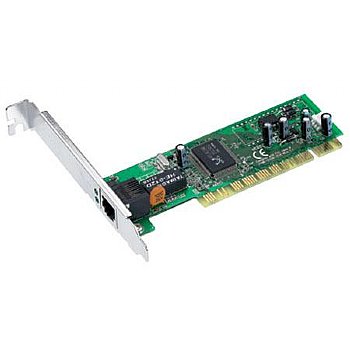

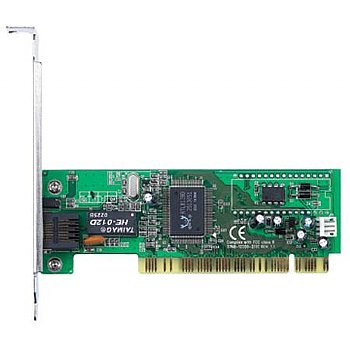

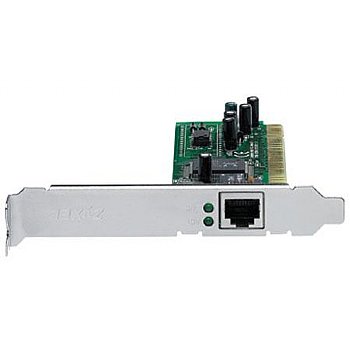

ZyXEL FN312 connects PCs to other networked computers, printers, routers, NAS appliances and the Internet, enabling high-speed data transfer rates for all kinds of data.
Features:
![](http://www.adorama.com/artworks2/blackbulet.gif) | FN312, with Wake-On-LAN, allows you to remotely access your PCs at any time to perform administrative tasks |
![](http://www.adorama.com/artworks2/blackbulet.gif) | Compatible with the Microsoft-led On Now industry initiative for instantly available PCs |
![](http://www.adorama.com/artworks2/blackbulet.gif) | Just open your PC, plug in your FN312, start your PC and install the driver from the floppy diskette |
Specifications:
Standards | Complies with IEEE802.3/IEEE802.3u Complies PCI spec. v. 2.1/2.2 Support Half/Full Duplex operation at 10BaseT/100BaseTX Support 10/100M auto-negotiation on RJ-45 connector Support WOL function that allows remote power control of the PC Diagnostic LEDs indicates status of both network and adapter |
Data transfer rates | Ethernet 10M/20Mbps(half/full duplex) Fast Ethernet 100M/200M(half/full duplex) |
Interface | 1 10/100BASE-T Ethernet port |
Network Cables | 10BASE-T: UTP Cat.3, 4, 5 (100 m) EIA/TIA-586 100-ohm STP (100 m) 100BASE-TX: UTP Cat.5 (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) Media Interface Exchange: MDI-II/MDI-X auto-adjustment |
Status LED | 10/100M, LNK/ACT |
Back plane | Non-Blocking full wire speed forwarding rate 200Mbps |
Packet Forwarding Rate | 14880PPS for 10BASE-T 148800PPS for 100BASE-TX |
Switching Method | Store-and-forward |
Operating temperature | 32deg. F - 113deg. F / 0deg. C-45deg. C |
Humidity | 10% to 90% (Non-condensing) |
System support | Microsoft Windows 98/2000/ME/XP Microsoft Windows NT 4.0 Microsoft Windows Workgroup 3.11 Novell NetWare 5.x/4.x Novell NetWare client 32 Linux Redhat 6.x, 7.x Network Cables |
| |
