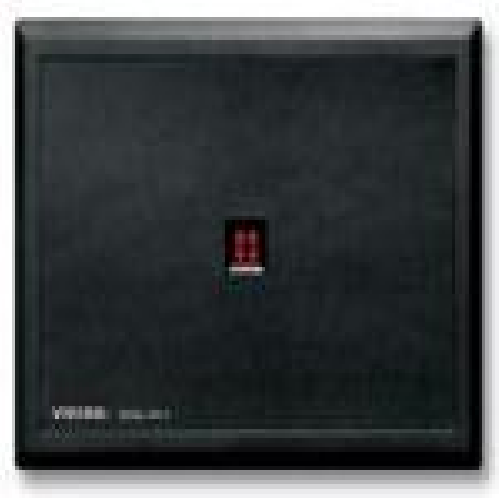

| High Performance Proximity Card Reader with up to 16 inches* of Read Range and Optional Gooseneck Pedestal Mounting Kits The model PRX-3 is a high performance medium range 125KHz proximity card reader that supports Viking PRX-C, PRX-C-ISO, PRX-FOB and certain legacy HID® proximity protocols**. The PRX-3’s compact size yet long read range of up to 16 inches* make it ideal for parking control, gate access, turnstiles, etc. It is designed to be mounted directly to a wall, post, single gang electrical box or use an optional mounting kit for attaching it to a gooseneck pedestal. Mounting is simplified with horizontal and vertical mounting slots, which allow the reader to be conveniently adjusted and leveled. To increase vandal resistance the chassis is a single piece design with the mounting screws concealed behind a UV stable label.
The proximity card reader transmits data in 26-Bit Wiegand format, making it compatible with any of the Wiegand equipped Viking entry controllers. The PRX-3 is equipped with Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation. With its sealed connections and fully potted electronics the PRX-3 is designed to meet an IP66 Ingress Protection Rating. For more information, see DOD# 859.
** HID and the HID logo are registered trademarks of HID Global Corporation, an ASSA ABLOY company. All other trademarks are the property of their respective owners.
|
Applications - Parking control, gate access, turnstiles, etc.
- Compatible with these Viking products: AES-2000, AES-2005, C-4000, ES-1, VE-GNP Series
|
Specifications - Power: 5-16 DC (12V nominal), 300mA - average, 500mA - peak
- Dimensions: 216mm x 152mm x 25mm (8.5” x 6.0” x 1.0”)
- Shipping Weight: 1.0 kg (2.3 lb)
- Environmental: -40° C to 65° C (-40° F to 150° F) with up to 100% humidity
- Connections: 18” long pigtail leads, 24 gauge
- Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB and certain legacy HID® proximity protocols**
|
