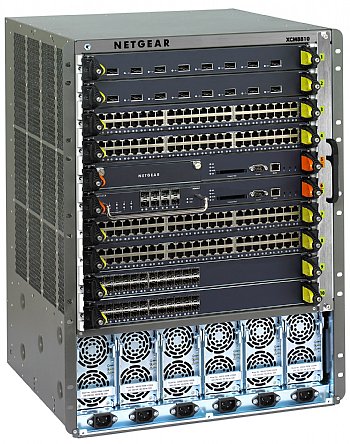

The NETGEAR 8800 Series 10-slot Chassis XCM8810 simplifies network infrastructures with purpose-built core, aggregation, and intelligent edge modules.
The NETGEAR 8800 Series takes a modular, future-proof approach to consolidating data and voice networking services essential to the success of medium-size enterprises. Not only does the NETGEAR XCM8800 Series support more industry standard protocols than comparable devices in the market, its rack-mount backplane-based design pays off with unmatched flexibility, energy efficiency, and service availability.
Connectivity options include Gigabit copper, Gigabit optical, and 10 Gigabit optical I/O modules, as well as optional 802.3 af power over Ethernet (PoE). Local Switching on every I/O module and 48 Gbps per slot bidirectional bandwidth provide high-density, line-rate connectivity.
XCM8810 switches have a complete L2/L3/L4 aggregation feature set, including IPv6, and an optional Advanced Core license upgrade for critical core applications. These chassis switches reduce management overhead, operational complexity, and capital expenditure, supporting a wide variety of applications.
Reliable
NETGEAR XCM8800 Series has been built from the ground up with reliability and service availability as top priority design objectives. Available in ten-slot model with XCM8810, the NETGEAR XCM8800 Series offers redundant control modules and power supply configuration options backed by automated fail-over functions. The NETGEAR OS running on the XCM8800 Series features full preemptive multitasking with fault isolation. NETGEAR OS monitors process execution in real time, automatically restarting failed or stalled processes.
Reliability and security walk hand in hand. The NETGEAR XCM8800 Series includes built-in threat detection and hardening against denial of service attacks that can not only disrupt business operations, but also damage public reputation.
Finally, NETGEAR backs the XCM8800 Series with a three-year warranty and award-winning customer support, including 3-year Next Business Day Onsite Replacement in specific regions.
Affordable
The NETGEAR XCM8800 offers low operating costs over the complete purchase, installation, operation and maintenance lifecycle. Affordability begins with a highly competitive more-features-for-less-money purchase price and continues with fast and easy set-up and installation, low IT staff learning curves, efficient power consumption, ease of maintenance and inherent reliability.
The NETGEAR XCM8800 Series supports all major communications protocols, including the latest versions of IPv6, 802.3af Power over Ethernet (PoE), Gigabit copper or optical, and 10-Gigabit optical connectivity. Power conservation comes standard with the NETGEAR XCM8800 Series to lower operating costs, extend service life and make every Watt count in contributing to enterprise productivity. The NETGEAR XCM8800 Series' modular design also makes it easy to reconfigure and upgrade network services as business requirements and technologies change.
Simple
Like all NETGEAR products, the NETGEAR XCM8800 Series delivers maximum functionality with minimum complexity. In addition to combating networking device sprawl through its rack-mount design and complete line of plug and play functional modules, operating software and system management features take the complexity out of delivering network services to medium sized organizations.
General Specifications - Chassis
- XCM8806 NETGEAR 8800 Series 6-slot Chassis Switch
- Empty 6-slot chassis with backplane, fan tray, and power supply/fan controllers included
- Power supplies ordered separately
- XCM8810 NETGEAR 8800 Series 10-slot Chassis Switch
- Empty 10-slot chassis with backplane, fan tray, and power supply/fan controllers included
- Power supplies ordered separately
General Specification – Supervisory Module
- XCM88S1 NETGEAR 8800 Series Supervisory Module
- Switching fabric (one Supervisory module): 424 Gbps
- Switching fabric (two Supervisory modules): 800 Gbps
- One compact flash slot for storage (firmware, debug information capture)
- One slot for optional 8-port 1000Base-X SFP Card (XCM888F)
- One Management port (10/100 RJ45)
- One Console port (serial RS-232)
General Specification – Gigabit Copper I/O Module
- XCM8848T NETGEAR 8800 Series 48-port 10/100/1000Base-T Module
- 48 auto-sensing RJ45 10/100/1000 ports
- Optional 802.3af PoE daughter card (XCM88P)
General Specification – Gigabit Fiber I/O Module
- XCM8824F NETGEAR 8800 Series 24-port 1000Base-X SFP Module
General Specification – 10 Gigabit I/O Module
- XCM8808X NETGEAR 8800 Series 8-port 10GBase-XFP Module
General Specification – PSU
- XCM88PS1 NETGEAR 8800 Series 100-240VAC Power Supply Unit
- Delivers 700W at 90V to 110V
- Delivers 1,200W at 210V to 220V
Supported Protocols – Switching
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- IEEE 802.3ae 10GBASE-X
- IEEE 802.3af Power over Ethernet
- IEEE 802.1D – 1998 Spanning Tree Protocol (STP)
- IEEE 802.1D – 2004 Spanning Tree Protocol (STP and RSTP)
- IEEE 802.1w – 2001 Rapid Reconfiguration for STP, RSTP
- IEEE 802.1Q – 2003 (formerly IEEE 802.1s)
- Multiple Instances of STP, MSTP
- PVST+, Per VLAN STP (802.1Q interoperable)
- Draft-ietf-bridge-rstpmib-03.txt – Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol
- IEEE 802.1Q – 1998 Virtual Bridged Local Area Networks
- IEEE 802.3ad Static load sharing configuration and LACP based dynamic configuration
- Software Redundant Ports
- IEEE 802.1AB – LLDP Link Layer Discovery Protocol
- LLDP Media Endpoint Discovery (LLDP-MED), ANSI/TIA-1057, draft 08
Supported Protocols - Management and Traffic Analysis
- RFC 2030 SNTP, Simple Network Time Protocol v4
- RFC 854 Telnet client and server
- RFC 783 TFTP Protocol (revision 2)
- RFC 951, 1542 BootP
- RFC 2131 BOOTP/DHCP relay agent and DHCP server
- RFC 1591 DNS (client operation)
- RFC 1155 Structure of Mgmt Information (SMIv1)
- RFC 1157 SNMPv1
- RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB & TRAPs
- RFC 1573 Evolution of Interface
- RFC 1650 Ethernet-Like MIB (update of RFC 1213 for SNMPv2)
- RFC 1901, 1905 – 1908 SNMP v2c, SMIv2 and Revised MIB-II
- RFC 2576 Coexistence between SNMP Version 1, Version 2 and Version 3
- RFC 2578 – 2580 SMIv2 (update to RFC 1902 – 1903)
- RFC 3410 – 3415 SNMPv3, user based security, encryption and authentication
- RFC 3826 – The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model
- RFC 1757 RMON 4 groups: Stats, History, Alarms and Events
- RFC 2021 RMON2 (probe configuration)
- RFC 2613 SMON MIB
- RFC 2925 Ping/Traceroute MIB
- RFC 2668 802.3 MAU MIB
- draft-ietf-hubmib-mau-mib-v3-02.txt
- RFC 1643 Ethernet MIB
- RFC 1493 Bridge MIB
- RFC 2096 IPv4 Forwarding Table MIB
- RFC 2737 Entity MIB v2
- RFC 2233 Interface MIB
- RFC 3621 PoE-MIB (PoE switches only)
- Secure Shell (SSH-2) client and server
- Secure Copy (SCP-2) client and server
- Secure FTP (SFTP) server
- sFlow version 5
- Configuration logging
- Multiple Images, Multiple Configs
- RFC 3164 BSD Syslog Protocol with Multiple Syslog Servers ––999 Local Messages (criticals stored across reboots)
- Web-based chassis interface
- IP Route Compression
Supported Protocols - Security, Switch and Network Protection
- Secure Shell (SSH-2), Secure Copy (SCP-2) and SFTP client/server with encryption/authentication (requires export controlled encryption module)
- SNMPv3 user based security, with encryption/authentication (see above)
- RFC 1492 TACACS+
- RFC 2138 RADIUS Authentication
- RFC 2139 RADIUS Accounting
- RFC 3579 RADIUS EAP support for 802.1x
- RADIUS Per-command Authentication
- Access Profiles on All Routing Protocols
- Access Policies for Telnet/SSH-2/SCP-2
- Network Login – 802.1x, Web and MAC-based mechanisms
- IEEE 802.1x – 2001 Port-Based Network Access Control for Network Login
- Multiple supplicants with multiple VLANs for Network Login (all modes)
- Fallback to local authentication database (MAC and Web-based methods)
- Guest VLAN for 802.1x
- RFC 1866 HTML – used for Web-based Network Login
- SSL/TLS transport – used for Web-based Network Login (requires export controlled encryption module)
- MAC Security – Lockdown and Limit
- IP Security – RFC 3046 DHCP Option 82 with port and VLAN ID
- IP Security – Trusted DHCP Server
- Layer 2/3/4 Access Control Lists (ACLs)
- RFC 2267 Network Ingress Filtering
- RPF (Unicast Reverse Path Forwarding) Control via ACLs
- Wire-speed ACLs
- Rate Limiting/Shaping by ACLs
- IP Broadcast Forwarding Control
- ICMP and IP-Option Response Control
- SYN attack protection
- CPU DoS Protection with traffic rate-limiting to management CPU
- Robust against common Network Attacks:
- CERT (http://www.cert.org)
- CA-2003-04: "SQL Slammer”
- CA-2002-36: "SSHredder”
- CA-2002-03: SNMP vulnerabilities
- CA-98-13: tcp-denial-of-service
- CA-98.01: smurf
- CA-97.28: Teardrop_Land -Teardrop and "LAND" attack
- CA-96.26: ping
- CA-96.21: tcp_syn_flooding
- CA-96.01: UDP_service_denial
- CA-95.01: IP_Spoofing_Attacks_and_Hijacked_ Terminal_Connections
- IP Options Attack
- Host Attacks
- Teardrop, boink, opentear, jolt2, newtear, nestea, syndrop, smurf, fraggle, papasmurf, synk4, raped, winfreeze, ping –f, ping of death, pepsi5, Latierra, Winnuke, Simping, Sping, Ascend, Stream, Land, Octopus
Supported Protocols - Security, Router Protection
- IP Security – DHCP enforcement via Disable ARP Learning
- IP Security – Gratuitous ARP Protection
- IP Security – DHCP Secured ARP/ARP Validation
- Routing protocol MD5 authentication
Supported Protocols - IPv4 Host Requirements
- RFC 1122 Host Requirements
- RFC 768 UDP
- RFC 791 IP
- RFC 792 ICMP
- RFC 793 TCP
- RFC 826 ARP
- RFC 894 IP over Ethernet
- RFC 1027 Proxy ARP
- RFC 2068 HTTP server
- IGMP v1/v2/v3 Snooping with Configurable Router Registration Forwarding
- IGMP Filters
- PIM Snooping
- Static IGMP Membership
- Multicast VLAN Registration (MVR)
Supported Protocols - IPv4 Router Requirements
- RFC 1812 Requirements for IP Version 4 Routers
- RFC 1519 CIDR
- RFC 1256 IPv4 ICMP Router Discovery (IRDP)
- Static Unicast Routes
- Static Multicast Routes
- RFC 1058 RIP v1
- RFC 2453 RIP v2
- Static ECMP
- RFC 1112 IGMP v1
- RFC 2236 IGMP v2
- RFC 3376 IGMP v3
- RFC 2933 IGMP MIB
- RFC 2096 IPv4 Forwarding Table MIB
- RFC 1724 RIPv2 MIB
- RFC 3768 VRRPv2
- RFC 2787 VRRP MIB
- RFC 2328 OSPF v2 (Edge-mode)
- OSPF ECMP
- OSPF MD5 Authentication
- RFC 1587 OSPF NSSA Option
- RFC 1765 OSPF Database Overflow
- RFC 2370 OSPF Opaque LSA Option
- RFC 3623 OSPF Graceful Restart
- RFC 1850 OSPFv2 MIB
- RFC 2362 PIM-SM (Edge-mode)
- RFC 2934 PIM MIB
- RFC 3569, draft-ietf-ssm-arch-06.txt PIM-SSM PIM Source Specific Multicast
- draft-ietf-pim-mib-v2-o1.tx
- Mtrace, a "traceroute” facility for IP Multicast: draft-ietf-idmr-traceroute-ipm-07
- Mrinfo, the multicast router information tool based on Appendix-B of draft-ietf-idmr-dvmrpv3-11
Supported Protocols - IPv6 Host Requirements
- RFC 5095, Internet Protocol, Version 6 (IPv6) Specification
- RFC 4861, Neighbor Discovery for IP Version 6, (IPv6)
- RFC 2463, Internet Control Message Protocol (ICMPv6) for the IPv6 Specification
- RFC 2464, Transmission of IPv6 Packets over Ethernet Networks
- RFC 2465, IPv6 MIB, General Group and Textual Conventions
- RFC 2466, MIB for ICMPv6
- RFC 2462, IPv6 Stateless Address Auto configuration – Host Requirements
- RFC 1981, Path MTU Discovery for IPv6, August 1996 – Host Requirements
- RFC 3513, Internet Protocol Version 6 (IPv6) Addressing Architecture
- RFC 3587, Global Unicast Address Format
- Telnet server over IPv6 transport
- SSH-2 server over IPv6 transport
- Ping over IPv6 transport
- Traceroute over IPv6 transport
Supported Protocols - IPv6 Interworking and Migration
- RFC 2893, Configured Tunnels
- RFC 3056, 6to4
Supported Protocols - IPv6 Router Requirements
- RFC 2462, IPv6 Stateless Address Auto configuration – Router Requirements
- RFC 1981, Path MTU Discovery for IPv6, August 1996 – Router Requirements
- RFC 2710, IPv6 Multicast Listener Discovery v1 (MLDv1) Protocol
- RFC 3810, IPv6 Multicast Listener Discovery v2 (MLDv2) Protocol
- Static Unicast routes for IPv6
- RFC 2080, RIPng
- Static ECMP
Supported Protocols - QoS and VLAN Services
- Quality of Service and Policies
- IEEE 802.1D – 1998 (802.1p) Packet Priority
- RFC 2474 DiffServ Precedence, including 8 queues/port
- RFC 2598 DiffServ Expedited Forwarding (EF)
- RFC 2597 DiffServ Assured Forwarding (AF)
- RFC 2475 DiffServ Core and Edge Router Functions
- VLAN Services: VLANs, vMANs
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1v: VLAN classification by Protocol and Port
- Port-based VLANs
- Protocol-based VLANs
- MAC-based VLANs
- Multiple STP domains per VLAN
- Upstream Forwarding Only/Disable Flooding
- RFC 5517 Private VLANs
- Multicast Support for PVLAN
- Multicast Support for VLAN Aggregation
- VLAN Aggregation
- Multicast VLAN Registration (MVR)
- IEEE 802.1 Q-in-Q (Double-VLAN tagging)
- IEEE 802.1ad Provider Bridge Network, virtual MANs (vMANs)
- vMAN Ethertype Translation/Secondary vMAN Ethertype
Advanced Core Protocols, IPv4 and IPv6
- Requires NETGEAR 8800 Series Advanced Core Software License Upgrade (XCM88ASL-10000S):
- PIM-DM Draft IETF PIM Dense Mode draft-ietfidmr-pim-dm-05.txt, draft-ietf-pim-dm-newv2-04.txt
- RFC 3618 Multicast Source Discovery Protocol (MSDP)
- RFC 3446 Anycast RP using PIM and MSDP
- RFC 2740 OSPFv3, OSPF for IPv6
- RFC 1771 Border Gateway Protocol 4
- RFC 1965 Autonomous System Confederations for BGP
- RFC 2796 BGP Route Reflection (supersedes RFC 1966)
- RFC 1997 BGP Communities Attribute
- RFC 1745 BGP4/IDRP for IP-OSPF Interaction
- RFC 2385 TCP MD5 Authentication for BGPv4
- RFC 2439 BGP Route Flap Damping
- RFC 2918 Route Refresh Capability for BGP-4
- RFC 3392 Capabilities Advertisement with BGP-4
- RFC 4360 BGP Extended Communities Attribute
- RFC 4486 Subcodes for BGP Cease Notification message
- draft-ietf-idr-restart-10.txt Graceful Restart Mechanism for BGP
- RFC 4760 Multiprotocol extensions for BGP-4
- RFC 1657 BGP-4 MIB
- Draft-ietf-idr-bgp4-mibv2-02.txt – Enhanced BGP-4 MIB
Physical Specifications - Dimensions
- XCM8810 Chassis Switch: 24.47” high x 17.51” wide x 18.23” deep (62.2 cm x 44.5 cm x 46.3 cm)
- XCM8806 Chassis Switch: 17.5” high x 17.51” wide x 18.23” deep (44.45 cm x 44.5 cm x 46.3 cm)
- XCM88PS1 Power Supply: 4.75” high x 2.75” wide x 13.75” deep (12.1 cm x 6.99 cm x 34.9 cm)
- XCM88S1 Supervisory Module Dimensions: 1.63” high x 15.26” wide x 15.25” deep (4.1 cm x 38.8 cm x 38.7 cm)
- All I/O Module Dimensions: 1.63” high x 15.26” wide x 15.25” deep (4.1 cm x 38.8 cm x 38.7 cm)
- XCM888F 8-port 1000Base-X SFP Card for XCM88S1 Dimensions: 1.32” high x 6.94” wide x 11.19” deep (3.35 cm x 17.63 cm x 28.42cm)
- XCM88P PoE Daughter Card for XCM8848T Dimensions: 1.25” high x 14.31” wide x 4.81” deep (3.18 cm x 36.35 cm x 12.22 cm)
Physical Specifications - Weight
- XCM8810 Chassis Switch: 79 lb (35.8 kg)
- XCM8810 Chassis Switch fully loaded (max): 200.5 lb (90.9 kg)
- XCM8806 Chassis Switch: 65 lb (29.5 kg)
- XCM8806 Chassis Switch fully loaded (max): 151 lb (68.5 kg)
- XCM88PS1 Power Supply: 7 lb (3.2 kg)
- XCM88S1 Supervisory Module: 6.45 lb (2.93 kg)
- XCM8848T 48-port 10/100/1000Base-T Module: 7.75 lb (3.52 kg)
- XCM8824F 24-port 1000Base-X SFP Module: 6.95 lb (3.15 kg)
- XCM8808X 8-port 10GBase-XFP Module: 6.91 lb (3.13 kg)
- XCM888F 8-port 1000Base-X SFP Card for XSM88S1: 2.20 lb (1.0 kg)
- XCM88P PoE Daughter Card for XCM8848T: 0.80 lb (0.36 kg)
Physical Specifications - Power
- XCM8810 Chassis Switch with Fan Trays: 55W (Heat Dissipation: 188 BTU)
- XCM8806 Chassis Switch with Fan Trays: 45W (Heat Dissipation: 154 BTU)
- XCM88S1 Supervisory Module: 150W (Heat Dissipation: 512 BTU)
- XCM8848T 48-port 10/100/1000Base-T Module: 110W (Heat Dissipation: 376 BTU)
- XCM8848T 48-port 10/100/1000Base-T Module with XCM88P PoE Daughter Card: 110W (Heat Dissipation: 376 BTU)
- XCM8824F 24-port 1000Base-X SFP Module: 100W (Heat Dissipation: 341 BTU)
- XCM8808X 8-port 10GBase-XFP Module: 135W (Heat Dissipation: 461 BTU)
Operating Specifications
- Operating Conditions
- Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
- Operating Humidity: 10% to 93% relative humidity, non-condensing
- Operational Shock: 30 m/s2 (3g), 11ms, 60 Shocks
- Operational Sine Vibration: 5-100-5 HZ @ 0.2G, 0-Peak, 01 Oct./min.
- Operational Random Vibration: 3-500MHz @ 1.5g rms
