Advanced Speed and Range with Comprehensive Internet Security

• Up to 15x the speed and 10x the coverage of 802.11g networks
• Concurrent operation in 2.4 GHz and 5 GHz radio band for maximum wireless throughput
• Backward compatibility with 802.11a, 802.11g and 802.11b network devices
• Security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
• Support for 802.3af PoE for optimal placement of access point

Features

• Up to 15x the speed and 10x the coverage of 802.11a, 802.11g networks
• Operation in 5 GHz radio band to avoid interference from 802.11b or 802.11g network devices
• Concurrent operation in 2.4 GHz and 5 GHz radio band
• Backward compatibility with 802.11a, 802.11g and 802.11b network devices
• Integrated 802.3af PoE eliminates extra cables and enables optimal placement of the access point
• Comprehensive SNMP functionality for advanced network management
• Deploy wireless coverage over large areas with point-to-point and point-to-multipoint bridging via Wireless Distribution System (WDS)
• Security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
• Plenum-rated for safe and convenient placement above drop-down ceilings
• Metal case includes Kensington lock slot for anti-theft
• Internal antennas factory-optimized for maximum RF performance
• Antenna take-offs enable optional accessory antenna attachment for 2.4 GHz operations
• Lifetime hardware warranty

Standards

• IEEE 802.11n draft 2.0 specification, 2.4 GHz and 5.0 GHz
• IEEE 802.11a 5.0 GHz
• IEEE 802.11g, IEEE 802.11b, 2.4 GHz
• WMM - Wi-Fi Multimedia prioritization
• Wireless Distribution System
• IEEE 802.3af Power over Ethernet (PoE)

Physical Specifications

• Dimensions: 32 x 190 x 124 mm (1.25 x 7.5 x 4.9 in)
• Weight: (.56 kg) 1.2 lb

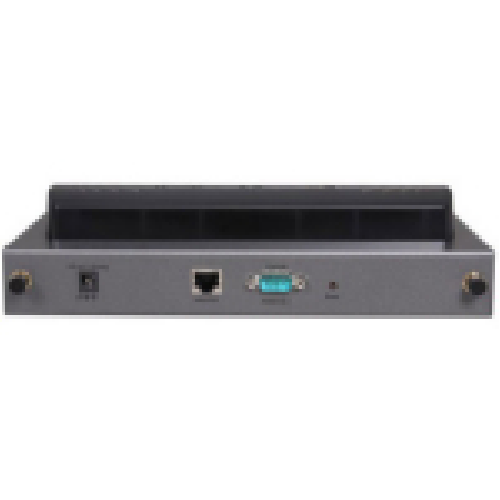

Physical Interfaces

• One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support
• Power adapter: 12V DC, 1A; plug is localized to country of sale
• Five (5) LEDs: Power, test, 100/1000 Mbps, link/ACT, 2.4 GHz band, 5.0 GHz band
• One (1) console port with standard RS-232C interface with DB-9 male connector
• Two (2) reverse SMA antenna connectors
  Note: Not recommended for use with ProSafe Antennas ANT2405, ANT2409 or ANT24D18.

Power over Ethernet Required

• Up to 12.8W

Security

• Wi-Fi Protected Access (WPA, WPA2)
• Wired Equivalent Privacy (WEP) 64-bit, 128-bit encryption
• IEEE 802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
• Wireless access control to identify authorized wireless network devices
• MAC address authentication
• VPN pass-through support
• Secure SSH telnet
• Secure Sockets Layer (SSL) remote management login

Network Management

• Remote configuration and management through Web browser, SNMP or telnet with Command Line Interface (CLI)
• SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary configuration MIB

Advanced Wireless Features

• Point-to-point wireless bridge mode
• Point-to-multipoint wireless bridge mode
• Repeater mode
• Simultaneous wireless bridge and access point mode
• Wireless Distribution System (WDS)
• Adjustable transmit power control (TPC) from 100 mW down to 0 mW

Warranty

• Access point: NETGEAR Lifetime Warranty
• Power supply: 3-year warranty
