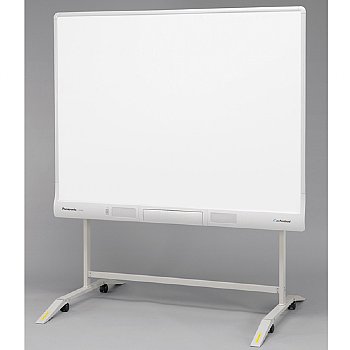

The elite Panaboard is an advanced eduational tool that helps you grab students' attention. It makes it easy to create effective, eye-catching teaching materials and it promotes active, visual-based teaching and learning that makes the classroom fun for both teacher and student! Panasonic and the elite Panaboard open the door to a new kind of active, visual-based education.
Includes RM Easiteach Next Generation curriculum software, 5 user license standard.
 |
|
|
|
|
|
|
 |
|
Power Supply |
|
AC 100 - 120V, 50/60Hz |
|
|
|
Power Consumption |
|
0.5A (operation) |
|
|
|
Writing Implements |
|
Finger, Electronic Pen |
|
|
|
Panel Diagonal Dimension |
|
77" |
|
|
|
Interface |
|
USB 2.0 B Type |
|
|
|
Panel Surfaces |
|
Melamine Coated Hardboard |
|
|
|
Panel Dimensions (H x W) |
|
46.26 x 63.07 |
|
|
|
Position Sensor |
|
Capacitance Type Touch Sensor |
|
|
|
Audio Input Level |
|
input level 309 mVrms, Stereo1 system, 3.5mm stereo mini jack |
|
|
|
Audio Output |
|
2 W + 2 W (Max. 4 W + 4 W) |
|
|
|
Supported Operating Systems |
|
Windows XP (SP3 or later), Windows Vista (SP2 or later), Windows 7 |
|
|
|
Included Accessories |
|
Operating instructions, Power Cord (10 ft), Electonic Pen, Battery (LR03 AAA Alkaline), USB Cable (16 ft), Software DVD-ROM, replacement Pen Point, Wall Mounting Kit |
|
|
|
USB Hub |
|
2 x USB 2.0 A type |
|
|
|
Electronic Pen Colors |
|
5 selectable colors |
|
|
|
Dimensions (H x W x D) |
|
51.97' x 65.24' x 4.6' |
|
|
|
Weight |
|
79.4 lbs | |
