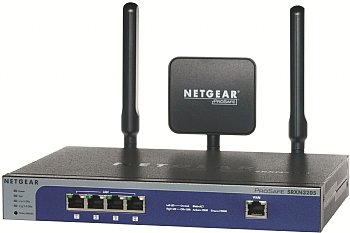

NETGEAR’s SRXN3205 ProSafe® Wireless-N VPN Firewall offers two types of virtual private network (VPN) tunnels, Secure Sockets Layer (SSL) and IP security (IPsec), for optimal secure connection to your network. SSL VPN tunnels provide clientless remote access to your corporate data for individual access anywhere and anytime without a software client. IPsec VPN tunnels deliver both secure site-to-site tunnels and legacy remote access support, connecting multiple offices together, as well as client-based remote access. Backed by a sophisticated firewall, the SRXN3205 is a high-performance, SNMP-manageable security solution that furnishes multidimensional security including denial-of-service (DoS) protection, stateful packet inspection (SPI), URL keyword filtering, logging, reporting, and real-time alerts. Four Gigabit LAN ports in conjunction with an integrated dual band Wireless-N Access Point keep your data moving at top speed.





The SRXN3205 Wireless-N VPN Firewall takes care of all your security needs, with support of up to 5 SSL VPN tunnels and 5 IPsec VPN tunnels simultaneously, hacker protection via SPI firewall, DoS attack protection, and multiple VPN pass-through. SYSLOG and email reporting enable thorough network monitoring. The SSL VPN tunnels support industry-strength encryption algorithms and features such as automatic cache cleanup after session termination to ensure protection and privacy of your sensitive data. The SRXN3205 Wireless-N VPN Firewall provides optimal value and defense against network security threats.





NETGEAR’s SRXN3205 Wireless-N VPN Firewall delivers the coverage and speed advantages of 802.11n wireless networks. Designed to deliver the superior wireless network that your clients want, the SRXN3205 makes it easy to move up to 802.11n. Operating in either 2.4 GHz or 5.0 GHz radio bands, the SRXN3205 provides the flexibility to transition from legacy networks. Select the 2.4 GHz radio band to gain superior wireless connection while maintaining support for existing 802.11g and 802.11b networks. Wireless- N clients on this network will experience excellent throughput and range, while legacy clients will continue to function. For the full benefits of Wireless-N, select the 5.0 GHz radio band to create an overlay network that does not interfere with the on-hand 802.11g and 802.11b devices such as older laptops, print servers, hand-held inventory scanners, and IP cameras. Selected clients that are upgraded to this N network will achieve the full capabilities such as:



Auto Detect connects to your ISP quickly; the user-friendly Web-based ProSafe Control Center configuration screen and install assistant reduce setup time. With SSL VPN tunnels, users can quickly and securely access company data with just a Web browser. The IPsec VPN wizard automates IPsec VPN configuration and secure remote makes it simple to connect to multiple sites. Support for DHCP (client and server) as well as PPPoE allows for widespread deployment. The SRXN3205 is compatible with Windows®, UNIX®, Macintosh®, and Linux® OS.





Wireless

• IEEE 802.11n draft 2.0 spec, 2.4 GHz and 5.0 GHz
• IEEE 802.11a 5.0 GHz
• IEEE 802.11g, IEEE 802.11b, 2.4 GHz
• Wi-Fi Protected AccessTM (WPA, WPA2) with TKIP and AES
• Wired Equivalent Prviacy (WEP) 64 bit, 128-biy encryptions for IEEE 802.11b and 802.11g
• IEEE 802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
• 2 dipole antennas
• 1 patch antenna
• Three (3) reverse SMA antenna connectors

SPI Firewall

• Stateful packet inspection
  - prevents DoS attacks
  - stealth mode
  - user support: unrestricted
• Keyword filtering on:
  - address
  - service (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH)
  - protocol
  - Web UTL port / service blocking
  - ActiveX, Java, Javascript
• Port/Service Blocking

IPsec VPN Functionality

• 5 dedicated IPsec VPN tunnels
• Manual and Internet Key Exchange Security Association (IKE SA) assignment
  - preshared key signature
  - RSA/DSA signature
• Key life & IKE lifetimes time settings
• Perfect forward secrecy
• Diffie-Hellman groups 1 and 2
• Oakley Support
• Operating modes
  - main
  - aggressive
• Fully qualified domain name (FQDN support) for dynamic IP address VPN connections

IPsec Support

• DES (56 bit), 3DES(168 bit), AES (256 bit) encryption algorithm
• MD5 or SHA-1 hashing algorithm
• ESP support
• PKI features with x.509 v.3 certificate support
• Remote access VPN (client-to-site), site-to-site VPN
• IPsec NAT traversal (VPN pass-through)

SSL VPN Functionality

• 5 dedicated SSL VPN tunnels
• SSL version support: SSLv3 and TLS1.0
• SSL encryption support: DES, 3DES, ARC4, AES (ECB, CBC, XCBC, CNTR) 128/256 bit
• SSL message integrity: MD5, SHA-1, MAC-MDS/SHA-1, HMAC-MD5/SHA-1
• Certificate Support:
  - RSA
  - Diffie-Hellman
  - Self-signed

Routing Modes of Operation

• Many-to-one Multi-network Address Translation (NAT)
• Classical routing

IP Address Assignment

• Static IP address assignment
• Internal DHCP server of LAN
• DHCP client on WAN
• PPoE client support

Throughput

• LAN-to-WAN: 60 Mbps
• Connections: 20,000 concurrent sessions
• VPN throughput: 20 Mbps

HW Specifications

• Dimensions: 252.7 x 179.5 x 35.1 mm (9.95 x 7.07 x 1.38 in)
• Weight: 1.34 kg (2.95 lb)
• Processor speed: 300 MHz
• Memory: 64 MB RAM, 16 MB flash
• Power supply: Output 12V/18W

Environmental Specifications

• Operating temperature: 0° - 40° C (32° - 104° F)
• Operating humidity: 90% maximum relative humidity

Physical Interfaces

• 1 Gigabit Ethernet RJ45 WAN
• 4 Gigabit Ethernet RJ45 LAN

Management Features

Administration Interface

• SNMP (v2c) support
• Web graphic user interface
• Secure Sockets Layer (SSL) remote management
• User name and password protected
• Secure remote management support authenticated through IP address (or IP address range) and password
• Configuration changes/upgrades through Web GUI

Logging

• SYSLOG
• Email alerts

Functions

• VPN Wizard to simplify configuration of IPsec VPNs
• Auto Detect to automatically detect ISP address type (static, dynamic, PPPoE)
• Port range forwarding
• Port triggering
• Enable/disable WAN ping
• DNS proxy
• MAC address cloning/spoofing
• Network Time Protocol NTP support
• Diagnostic tools (ping, DNS lookup, trace route, other)
• Port/service
• Auto-Uplink on switch ports
• L3 Quality of Service (QoS)
• LAN-to-WAN and WAN-to-LAN (ToS)

Warranty

• Netgear Lifetime Warranty†

Package Contents

• ProSafe Wireless-N VPN Firewall (SRXN3205)
• Two (2) 5 dBi antennas and one (1) 3 dBi antenna
• Ethernet cable
• Power adapter
• User guide
• Resource CD with single-user ProSafe VPN Client Software license
• Warranty/support information card
