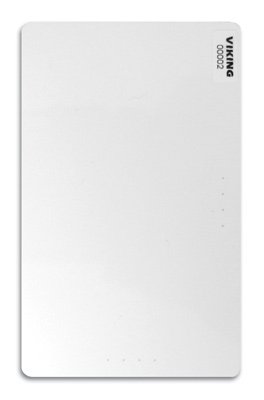

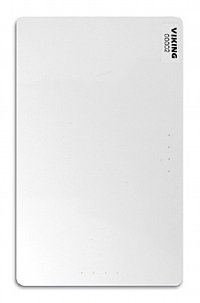

The PROXCARD and PROXCARD-ISO are non-contact security cards that can be placed in front of a PROX-1, 2, 3, HID-2 or any 125KHz HID compatible proximity card reader to allow entrance into a secured area. The PROXCARD is a clam shell card made made from 0.070” thick plastic to resist bending and folding. A slot is provided at one end to allow a lanyard to be added for creating a "dog tag” style neck strap. The PROXCARD-ISO is a thin 0.032” thick flexible "ISO” style proximity card. Much like a credit card, the PROXCARD-ISO is perfect for storing in your wallet.

The PROX-FOB is a proximity key ring fob with brass eyelet designed to attach to a key chain or necklace. The PROX-FOB’s compact size is only 1.5” x 1.2” x 0.15” making it one of the smallest available.

The cards and fobs are pre-programmed with a standard 26 bit Wiegand format consisting of a three digit facility code and a five-digit card number. The range of facility codes is from 2 to 254, and the card numbers range from 1 to 65,534. The actual card number can be printed on a label and placed on the back of each card for easy reference, or the card number can be offset by a fixed value for security purposes.

When ordering, the quantity, facility code, and starting card number along with the card number printing must be specified.



Applications Use with Viking PROX-1, PROX-2, PROX-3, HID-2 or any HID compatible 125KHz 26 bit Wiegand proximity card reader Applications include: apartment entry, building security and secured offices

Features Industry standard 125KHz RFID technology 26 bit Wiegand format Non-contact reading for long life Use with the Viking PROX-1, 2, 3, HID-2 or any HID compatible proximity card reader PROXCARD is a durable 0.070” thick plastic card with a slot for neck strap PROXCARD-ISO is a thin 0.032” thick flexible "ISO” style card PROXFOB is a durable key ring fob with a IP67 rating allowing it to even withstand the washing machine Up to 253 facility codes and 65,534 card numbers available Cannot be erased by a magnet

Specifications PROXCARD Dimensions: 54.2mm x 86.1mm x 1.78mm (2.135” x 3.39” x 0.070”) PROXCARD Shipping weight: 10 g (0.35 oz) PROXCARD-ISO Dimensions: 53.9mm x 85.5mm x 0.81mm (2.124” x 3.368” x 0.032”) PROXCARD-ISO Shipping weight: 6 g (0.21 oz) PROXFOB Dimensions: 38.1mm x 30.5mm x 3.8mm (1.5” x 1.2” x 0.15”) PROXFOB Shipping weight: 3 g (0.11 oz) Read Range: Variable - see proximity card reader specifications Facility Code Range: 2 - 255 Card Number Range: 1 - 65,535 Format: 26 bit standard Wiegand Operating Frequency: 125kHz
