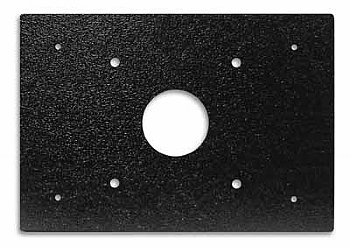

| The model PROX-3-MK-GNP is a mounting kit for attaching the PROX-3 proximity card reader to a VE-GNP gooseneck pedestal. The model PROX-3-MK-VEGNP is a mounting kit for attaching the PROX-3 proximity card reader and a VE-5x5, VE-6x7 or VE-5x10 (surface mount entry phone box) to a VE-GNP gooseneck pedestal. Both kits include the required mounting hardware and have mounting plates made from durable 3/8 inch thick black UV stable textured ABS plastic. The PROX-3-MK-VEGNP also comes with a gasket for sealing the back side of the VE surface mount box.
|
Applications - Parking control, gate access, turnstiles, etc.
- PROX-3-MK-GNP is compatible with PROX-3 and VE-GNP series gooseneck pedestals (see DOD# 228 and DOD# 424)
- PROX-3-MK-VEGNP is compatible with PROX-3, VE-5x5, VE-6x7, VE-5x10 and VE-GNP series gooseneck pedestals (see DOD# 228 and DOD# 424)
|
Features - PROX-3-MK-GNP allows the PROX-3 to be mounted directly to a Viking VE-GNP gooseneck pedestal
- PROX-3-MK-VEGNP allows the PROX-3 and a Viking entry phone (with surface mount box) to be mounted directly to a Viking VE-GNP gooseneck pedestal
- PROX-3-MK-VEGNP mounting plate can be mounted horizontally or vertically to allow the PROX-3 to be positioned on the left, right, top or bottom of the entry phone with VE-5x5 or VE-6x7 surface mount box
- Mounting plates are made from durable 3/8 inch thick black UV stable textured ABS plastic
- Mounting hardware is included with each kit
- PROX-3-MK-VEGNP kit also provides a gasket for sealing the back side of the VE surface mount box
|
Specifications - PROX-3-MK-GNP Dimensions: 208mm x 152mm x 10mm (8.2” x 6.0” x 0.38”)
- PROX-3-MK-VEGNP Dimensions: 348mm x 152mm x 10mm (13.7” x 6.0” x 0.38”)
- PROX-3-MK-GNP Shipping Weight: 0.37 kg (0.81 lb)
- PROX-3-MK-VEGNP Shipping Weight: 0.54 kg (1.2 lb)
- Environmental: -40° C to 65° C (-40° F to 150° F) with up to 100% humidity
- Included Hardware: (4) 1/4-20 x 1” carriage bolts, (4) 1/4-20 nylock nuts, (4) 6-32 x 1.25” flathead screws
|
