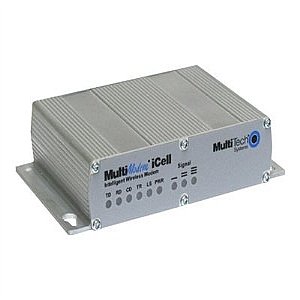

The MultiModem iCell intelligent cellular modems are ready-to-deploy, standalone modems that provide 2G and 3G, GSM and CDMA wireless data communication and integrate seamlessly with virtually any application. The intelligence of the embedded Universal IP stack allows for automatic/persistent connectivity for mission-critical applications and enhanced M2M (machine-to-machine) functionality. For applications such as asset tracking and fleet management, models with a dedicated GPS receiver are available. The MultiModem iCell intelligent cellular modems are based on industry-standard open interfaces and can be desktop or panel mounted.
Specifications:
General
Device Type: Wireless cellular modem
Enclosure Type: External
Width: 4.9 in
Depth: 3.5 in
Height: 1.1 in
Weight: 8 oz
Localization: United States
Modem
Interface Type: USB / serial RS-232
Connectivity Technology: Wireless
Max Transfer Rate: 7.2 Mbps
Max Fax Transfer Rate: 14.4 Kbps
Cellular Band: GSM 850/900/1800/1900
Cellular Protocol: GSM, GPRS, EDGE, HSPA
Expansion / Connectivity
Interfaces: 1 x USB - 4 pin USB Type B ¦ 1 x serial - RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x peripheral - input / output ¦ 1 x GPS antenna - SMA
Miscellaneous
Compliant Standards: EN55022 Class B, EN 301.489.1, FCC Part 15 B, R&TTE, UL 60950-1, IEC 60950-1, AS/ACIF S042.1, AS/ACIF S042.3, RSS-132, EN 301.489.7, EN 301.489.24, EN 301.511, RSS-133, EN 301.489.3, FCC Part 22, FCC Part 24, PTCRB
Manufacturer Warranty
Service & Support: 2 years warranty
Service & Support Details: Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature: -22 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 20 - 90% (non-condensing)
